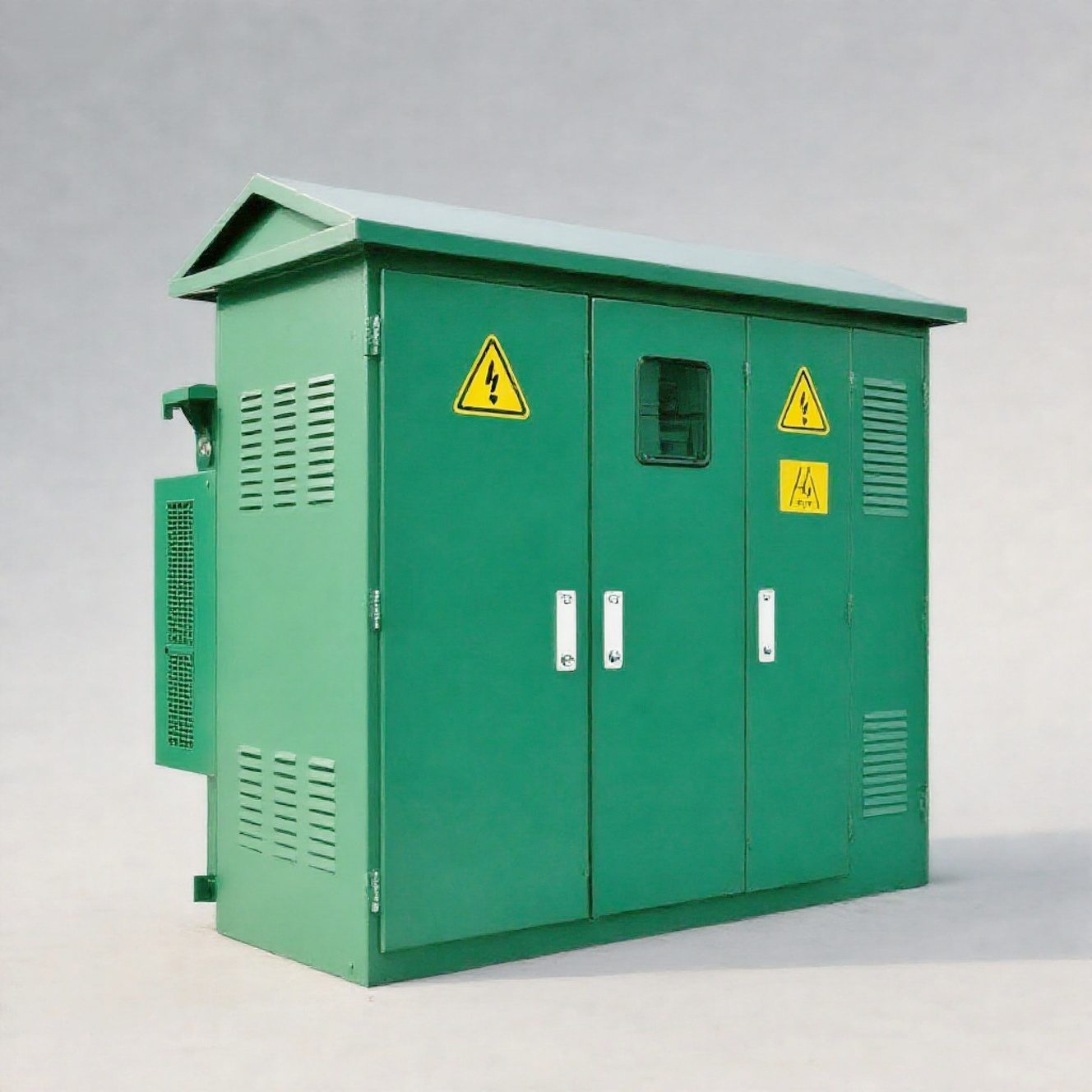

ZGS11-12 Combined American Prefabricated Substation

Overview
This product is developed by absorbing the latest foreign advanced technology and combining the actual domestic situation. The whole product has the characteristics of small size, easy installation and maintenance, low noise, low loss, anti-theft, full protection, strong overload capacity, etc. It is suitable for new residential areas, green belts, parks, stations, hotels, construction sites, airports and other places.

ZGS11-12Series combined American prefabricated substation, suitable for 10kVIn ring network power supply, dual power supply or terminal power supply system, it can be used as a transformer: metering, compensation control and protection device. This product complies with the following standards: GB17467High voltage/low voltage prefabricated substation and DL/T537 "Guide to Selection of High Voltage/Low Voltage Prefabricated Box Substations".

product details

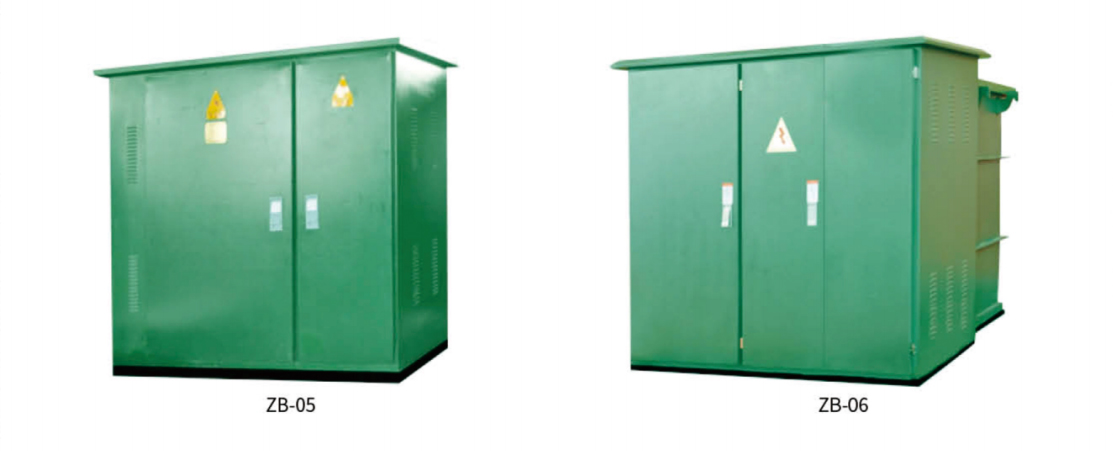

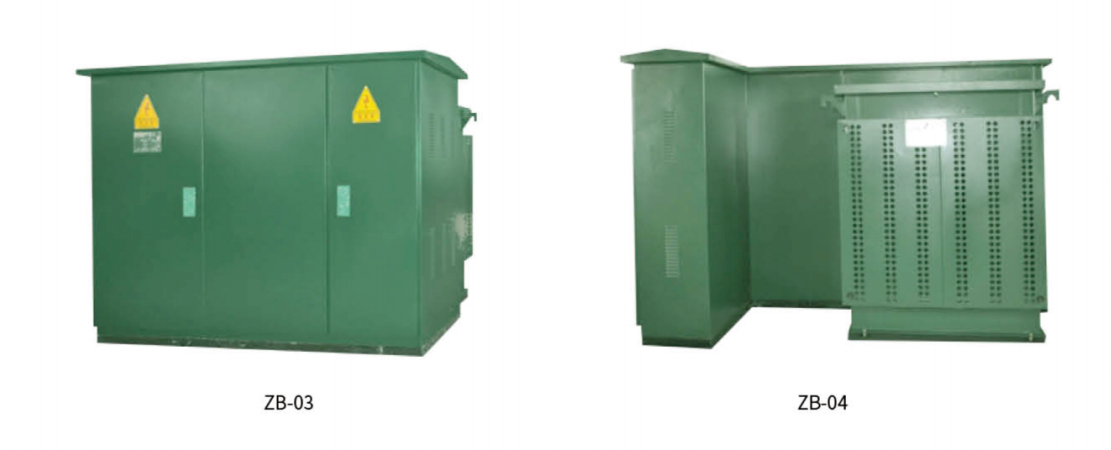

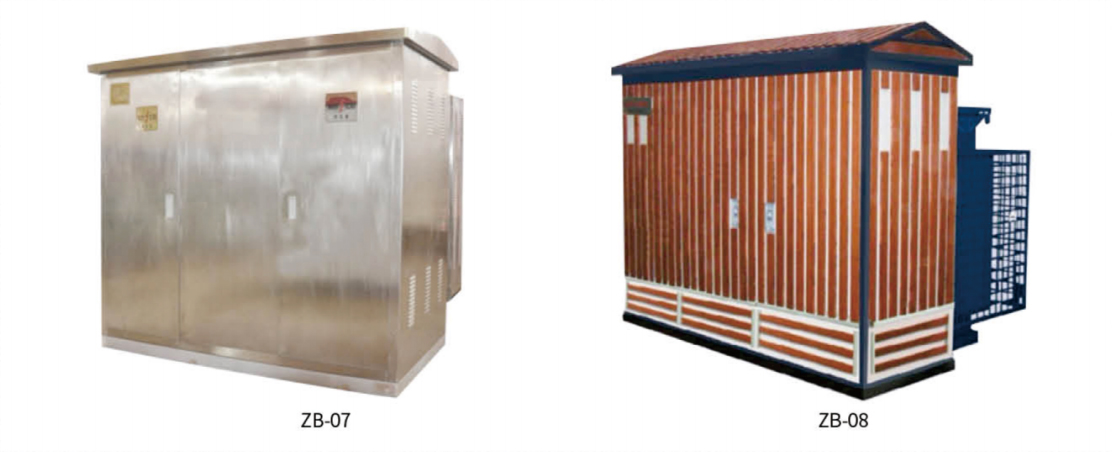

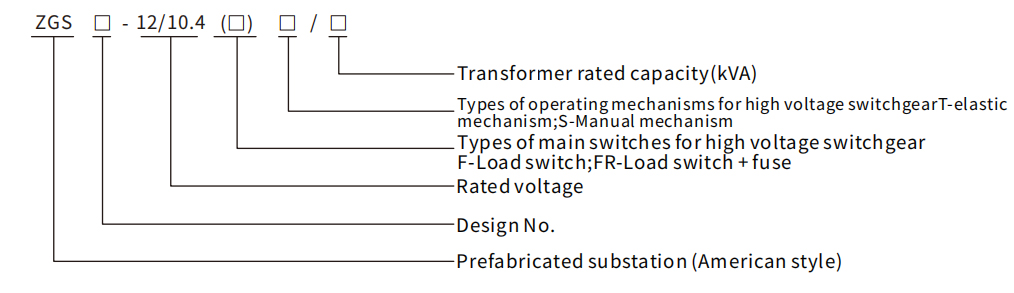

Model meaning

Conditions of Use

◇ Altitude not exceeding 1000m;

◇ Ambient temperature: -35℃~+40℃;

◇ Relative humidity: daily average value is not more than 95%, monthly average value is not more than 90%;

◇ Installation location: A well-ventilated place without ﬁre or explosion hazards, chemical corrosive gases, and a ground inclination of no more than 3 °.

Technical Parameters

NO.	Name	Unit	Technical Parameters
1	Rated voltage	KV	10/0.4(high pressure/1 low pressure)
2	Maximum operating voltage	KV	12 (high voltage side
3	Rated frequency	HZ	50
4	Rated capacity	KVA	50-1600
5	1 minute power frequency withstand voltage	KV	35
6	Lightning impulse voltage	KV	75
7	Cooling method		Oil-immersed self-cooling
8	High voltage backup fuse breaking current	KA	50
9	Plug-in fuse breaking current	KA	25
10	Ambient temperature		-35~+40
11	Coil allowable temperature rise	℃	65
12	No-load voltage regulation	℃	±5%or±2×2.5%
13	Noise Level	db	50
14	Protection level		lp43

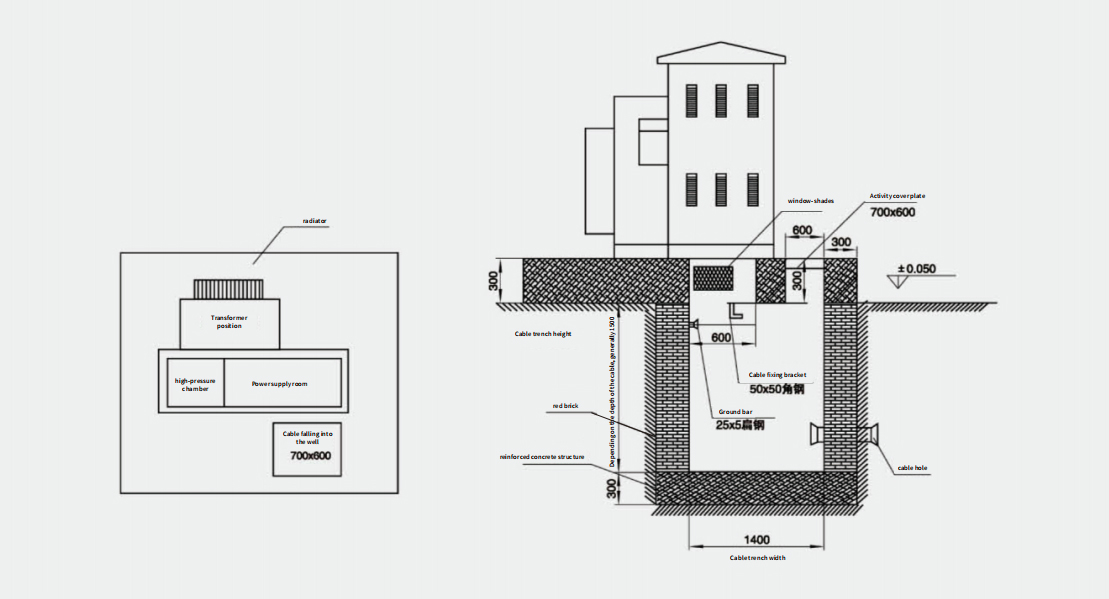

Installation Dimensions

Ordering Instructions

◇ Product operation location and special requirements;

◇ Provide product ordering drawings, which should include wiring diagrams, and should indicate transformer capacity, main component models and speciﬁcations, power distribution branch circuits and capacity;

◇ When electric energy metering and reactive power automatic compensation devices are required, the conﬁguration requirements of the metering electric energy meter and mutual inductor shall be provided, and the capacity of the compensation capacitor shall be indicated;

◇ Indicate the requirements for product surface treatment;

◇ When ordering combined transformers, please specify terminal type or ring network type.
