SCB-RL Triangular Three-Dimensional Wound Core Dry-Type Power Transformer

Overview

The triangle three-dimensional wound core dry-type power transformer is a kind of power transformation equipment that relies on air convection for natural cooling or adds fan cooling, and the core and the system are not immersed in insulating liquid. It has the characteristics of high insulation heat resistance and strong ﬁ re resistance, can penetrate deep into the load center, and is suitable for power transmission and transformation systems in high-rise buildings, commercial centers, industrial and mining enterprises, oil platforms, subways and tunnels.

product details

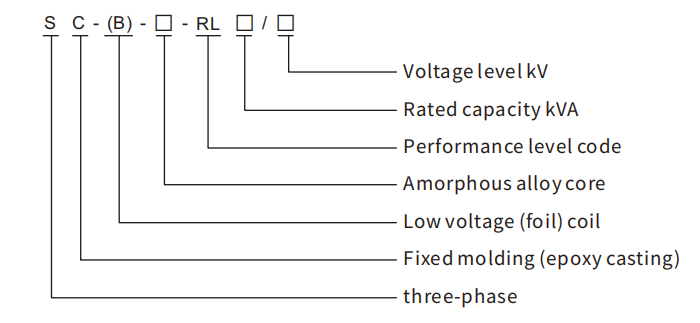

Model meaning

Rated capacity (KVA)	Voltage combination			Connection Group Label	No load Power consumption (W)	Load loss group A (W)			No load Current(%)	Short circuit impedance (%)	Sound Power class dB(A)	Dimensions (mm (length, width and height) Installation 4φ18	Total weight (kg)
	high pressure （KV）	Demarcation range	Low pressure			100°C	100°C	100°C
	high pressure （KV）	Demarcation range	Low pressure			B(100°C)	F(120°C)	H(145°C)
30	6 6.3 6.6 10 10.5 11	±5 or ±2 ×2.5	0.4	Dyn11	190	670	710	760	2.4	4.0	35	900x900x800	300
50					270	940	1000	1070	2.4		35	955x900x900	350
80					370	1290	1380	1480	1.8		36	985x950x960	400
100					400	1480	1570	1690	1.8		36	1035x1250x980	450
125					470	1740	1850	1980	1.6		37	1060x1280x1000	500
160					540	2000	2130	2280	1.6		37	1120x1320x1050	680
200					620	2370	2530	2710	1.4		38	1130x1330x1015	770
250					720	2590	2760	2960	1.4		38	1170x1330x1165	900
315					880	3270	3470	3730	1.2		39	1185x1360x1225	1010
400					980	3750	3990	4280	1.2		39	1210x1380x1300	1205
500					1160	4590	4880	5230	1.2		40	1245x1400x1380	1400
630					1340	5530	5880	6290	1	6.0	41	1295x1410x1355	1515
630					1300	5610	5960	6400	1		41	1295x1410x1355	1515
800					1520	6550	6960	7460	1		42	1375x1450x1480	1830
1000					1770	7650	8130	8760	1		42	1430x1480x1525	2170
1250					2090	9100	9690	10370	1		43	1480x1500x1570	2525
1600					2450	11050	11730	12580	1		44	1500x1520x1710	2930
2000					3050	13600	14450	15560	0.8		45	1570x1550x1735	3430
2500					3600	16150	17170	18450	0.8		46	1625x1600x1825	4030
1600					2450	12280	12960	13900	1	8.0	44	1500x1520x1710	2930
2000					3050	15020	15960	17110	0.8		45	1570x1550x1735	3430
2500					3600	17760	18890	20290	0.8		46	1625x1610x1825	4080

Note: Due to the continuous updating of products, the dimensions and weight of the products in the table may change. Please refer to the dimensions provided when ordering.

SCB11-RL-(30-2500)/11Three-dimensional triangle core dry-type power transformer

Rated capacity (KVA)	Voltage combination			Connection Group Label	No load Power consumption (W)	Load loss group A (W)			No load Current(%)	Short circuit impedance (%)	Sound Power class dB(A)	Dimensions (mm (length, width and height) Installation 4φ18	Total weight (kg)
	high pressure （KV）	Demarcation range	Low pressure			100°C	100°C	100°C
	high pressure （KV）	Demarcation range	Low pressure			B(100°C)	F(120°C)	H(145°C)
30	6 6.3 6.6 10 10.5 11	±5 or ±2 ×2.5	0.4	Dyn11		670	710	760	2.4	4.0	35	900x900x800	300
50						940	1000	1070	2.4		35	955x900x900	350
80						1290	1380	1480	1.8		36	985x950x960	400
100						1480	1570	1690	1.8		36	1035x1250x980	450
125						1740	1850	1980	1.6		37	1060x1280x1000	500
160						2000	2130	2280	1.6		37	1120x1320x1050	680
200						2370	2530	2710	1.4		38	1130x1330x1015	770
250						2590	2760	2960	1.4		38	1170x1330x1165	900
315						3270	3470	3730	1.2		39	1185x1360x1225	1010
400						3750	3990	4280	1.2		39	1210x1380x1300	1205
500						4590	4880	5230	1.2		40	1245x1400x1380	1400
630						5530	5880	6290	1	6.0	41	1295x1410x1355	1515
630						5610	5960	6400	1		41	1295x1410x1355	1515
800						6550	6960	7460	1		42	1375x1450x1480	1830
1000						7650	8130	8760	1		42	1430x1480x1525	2170
1250						9100	9690	10370	1		43	1480x1500x1570	2525
1600						11050	11730	12580	1		44	1500x1520x1710	2930
2000						13600	14450	15560	0.8		45	1570x1550x1735	3430
2500						16150	17170	18450	0.8		46	1625x1600x1825	4030
1600						12280	12960	13900	1	8.0	44	1500x1520x1710	2930
2000						15020	15960	17110	0.8		45	1570x1550x1735	3430
2500						17760	18890	20290	0.8		46	1625x1610x1825	4080

Note: Due to the continuous updating of products, the dimensions and weight of the products in the table may change. Please refer to the dimensions provided when ordering.

SCB13-RL-(30-2500)/13Three-dimensional triangle core dry-type power transformer

Rated capacity (KVA)	Voltage combination			Connection Group Label	No load Power consumption (W)	Load loss group A (W)			No load Current(%)	Short circuit impedance (%)	Sound Power class dB(A)	Dimensions (mm (length, width and height) Installation 4φ18	Total weight (kg)
	high pressure （KV）	Demarcation range	Low pressure			100°C	100°C	100°C
	high pressure （KV）	Demarcation range	Low pressure			B(100°C)	F(120°C)	H(145°C)
30	6 6.3 6.6 10 10.5 11	±5 or ±2 ×2.5	0.4	Dyn11		670	710	760	2.4	4.0	35	900x900x800	300
50						940	1000	1070	2.4		35	955x900x900	350
80						1290	1380	1480	1.8		36	985x950x960	400
100						1480	1570	1690	1.8		36	1035x1250x980	450
125						1740	1850	1980	1.6		37	1060x1280x1000	500
160						2000	2130	2280	1.6		37	1120x1320x1050	680
200						2370	2530	2710	1.4		38	1130x1330x1015	770
250						2590	2760	2960	1.4		38	1170x1330x1165	900
315						3270	3470	3730	1.2		39	1185x1360x1225	1010
400						3750	3990	4280	1.2		39	1210x1380x1300	1205
500						4590	4880	5230	1.2		40	1245x1400x1380	1400
630						5530	5880	6290	1	6.0	41	1295x1410x1355	1515
630						5610	5960	6400	1		41	1295x1410x1355	1515
800						6550	6960	7460	1		42	1375x1450x1480	1830
1000						7650	8130	8760	1		42	1430x1480x1525	2170
1250						9100	9690	10370	1		43	1480x1500x1570	2525
1600						11050	11730	12580	1		44	1500x1520x1710	2930
2000						13600	14450	15560	0.8		45	1570x1550x1735	3430
2500						16150	17170	18450	0.8		46	1625x1600x1825	4030
1600						12280	12960	13900	1	8.0	44	1500x1520x1710	2930
2000						15020	15960	17110	0.8		45	1570x1550x1735	3430
2500						17760	18890	20290	0.8		46	1625x1610x1825	4080

Note: Due to the continuous updating of products, the dimensions and weight of the products in the table may change. Please refer to the dimensions provided when ordering.
