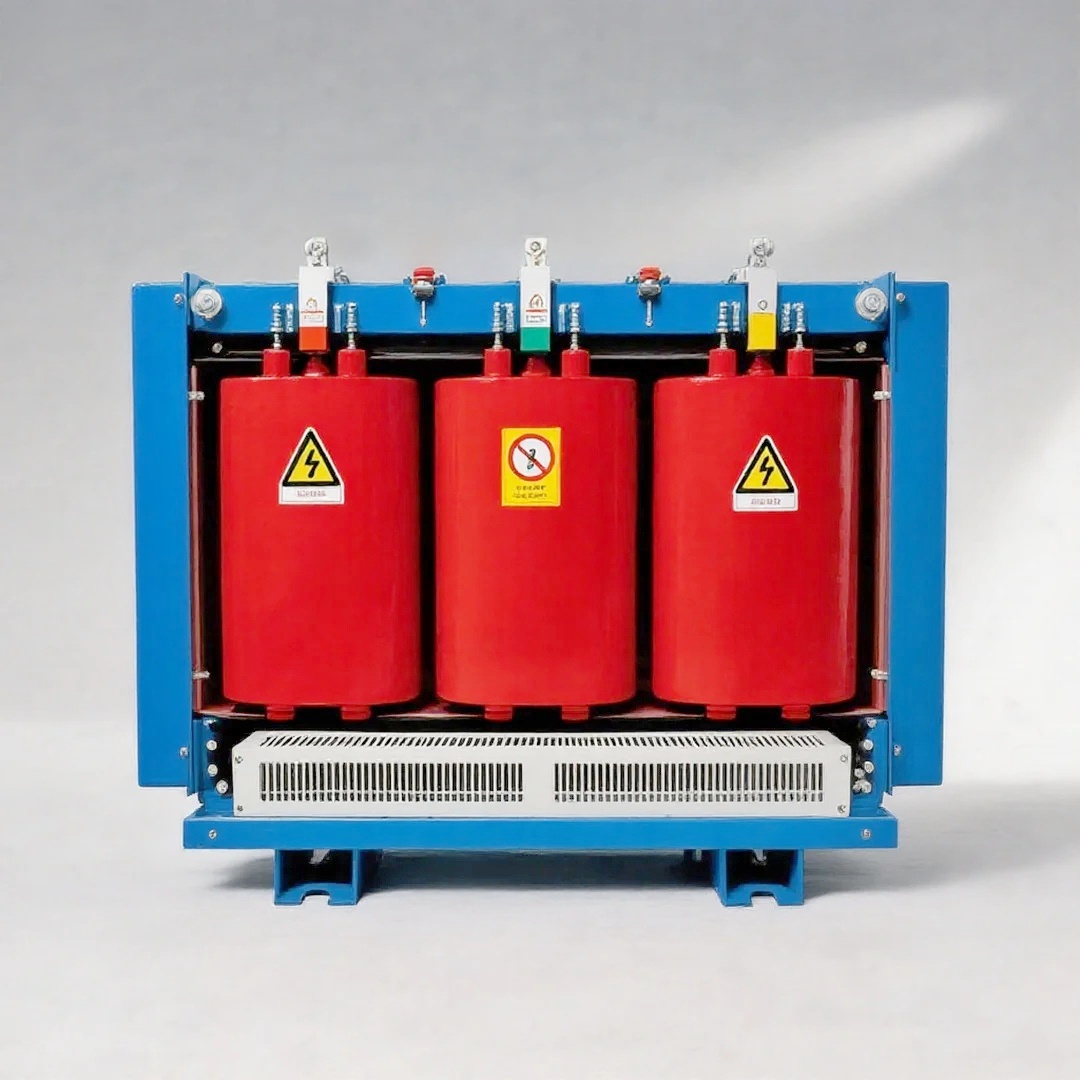

SC(B)H15 Amorphous Alloy Dry-Type Transformer

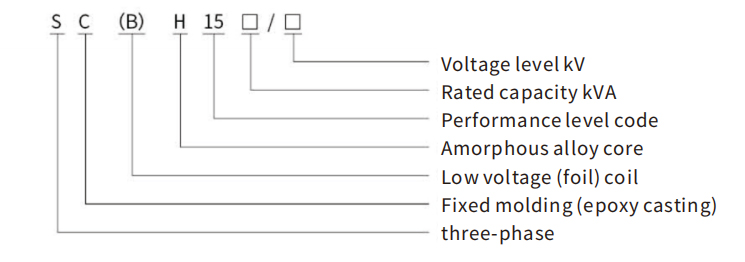

Model meaning
Structural features
◇ Safe, flame-retardant, fire-proof, pollution-free, and can be directly installed at the load center;
◇ High mechanical strength, strong short-circuit bearing capacity, safe and reliable operation;
◇ Maintenance-free, easy to install, and low overall operating cost;
◇ Good moisture-proof performance, can operate normally under 100% humidity, and can be put into operation without pre-drying after shutdown;
◇ Low loss, low partial discharge, low noise, strong heat dissipation capability, and can operate at 150% rated load under forced air cooling conditions;
◇ Equipped with a complete temperature protection control system. Provide reliable guarantee for the safe operation of the transformer;
◇ The notable features of amorphous alloy dry-type transformers are small no-load losses and relatively low economic operation and load rates:
◇ Especially suitable for industrial and mining enterprises with a load rate of 50% to 80% and a three-shift system;
◇ Amorphous alloy transformers are very beneficial to the reliable operation of power distribution equipment, energy saving and operating cost saving;
◇ Amorphous alloy dry-type transformers have low loss, less heat, low temperature rise, and stable operating performance;
◇ Amorphous alloy dry-type transformers have strong overload capacity, are safe and reliable, have strong corrosion resistance, and are maintenance-free. They can be widely used in places that require uninterrupted power supply, such as national defense, basements, and high-rise buildings.
Technical performance parameters
◇ Number of phases: 3 phases
◇ Frequency: 50Hz
◇ Partial discharge: less than 10PC
◇ Insulation heat resistance grade: F class
◇ Average winding temperature rise: no more than 100K
◇ Noise level: The sound level meets GB/T22072-2008
Product performance parameters
| Rated capacity | Voltage combination(KV) | Link group label | No-load loss | Load loss | No-load current | Impedance voltage | ||
| high pressure | High pressure decomposition range(%) | Low pressure | ||||||
| 100 | 6 6.3 6.6 10 10.5 11 | ±2×2.5 ±5 | 0.4 | Dyn11 | 130 | 1570 | 1.2 | 4 |
| 125 | 150 | 1850 | 1.1 | |||||
| 160 | 170 | 2130 | 1.1 | |||||
| 200 | 200 | 2523 | 1.0 | |||||
| 250 | 230 | 2760 | 1.0 | |||||
| 315 | 280 | 3470 | 0.9 | |||||
| 400 | 310 | 3990 | 0.8 | |||||
| 500 | 360 | 4880 | 0.8 | |||||
| 630 | 420 | 5880 | 0.7 | 6 | ||||
| 630 | 410 | 5960 | 0.7 | |||||
| 800 | 480 | 6960 | 0.7 | |||||
| 1000 | 550 | 8130 | 0.6 | |||||
| 1250 | 660 | 9690 | 0.6 | |||||
| 1600 | 760 | 11730 | 0.6 | |||||
| 2000 | 1000 | 14450 | 0.5 | |||||
| 2500 | 1200 | 17170 | 0.5 | |||||
Note: Due to continuous product updates, the parameters in the table may change. Please refer to the parameters provided when ordering.
Product performance parameters
| Voltage level(KV) | Maximum effective voltage of the equipment(KV) | Rated short-time power frequency voltage effective value kv/min | Rated lightning impulse with stand voltage full wave peak value kV |
| ≤1 | ≤1.1 | 3 | |
| 6 | 7.2 | 20 | 60 |
| 10 | 12 | 35 | 75 |
Products meet standards
◇ GB1094 . 1-1996Power transformers Part 1 General
◇ GB1094 .2-1996 Temperature rise of the second part of power transformer
◇ GB 1094 .3-2003Power transformers - Part 3 Insulation levels, insulation tests and external insulation air gaps
◇ GB1094 .5-2008 Power transformer part 5 short circuit capability
◇ GB/T22072-2008Technical parameters and requirements of dry-type amorphous alloy core distribution transformers
◇ GB311 . 1-1997Insulation coordination of high voltage power transmission and transformation equipment
◇ IEC 60076Power Transformer
◇ ANSI/C57. 1200General technical requirements for oil-immersed distribution, power and voltage regulating transformers
◇ GB1094 . 11-2007Power transformers Part 11: Dry-type transformers
