S11 Oil Immersed Power Transformer

High-quality materials
◇ Use oxygen-free copper wire with lower resistivity, and after a series of additional surface treatments, it is smoother and has no burrs or sharp corners, which reduces the load loss of the transformer and makes the electrical performance more reliable.
◇ Select high-quality silicon steel sheets. As the performance level improves, silicon steel sheets with lower unit loss are used to reduce the no-load loss of the transformer.
◇ Made of high-quality laminated wood insulation, it will never crack and will not move even under short-circuit current.
◇ Use deep-filtered transformer oil with lower water, gas and impurity levels, making the transformer work more reliable.
◇ Use high-quality rubber sealing materials to effectively prevent aging and prevent leakage.
◇ All raw materials have been quality inspected, and all raw material manufacturers have passed national standards IS09000strict scrutiny.

product details

Advanced technology and good performance

◇ S11Series products inS9Based on the series, the no-load loss is reduced by an average of 30%; the no-load current ratioS970-85% decrease;

◇ Average temperature rise reduced by 10K, Product life span more than doubled;

◇ The product operating noise is reduced by an average of 2-4 decibels.

Fully sealed(M)

Select S11(M)FirstMThe oil tank adopts a fully sealed structure. Compared with the ordinary oil diffused transformer, the fully sealed distribution transformer eliminates the oil storage cabinet and the corrugated fins of the oil tank replace the oil pipe. As a cooling and heat dissipation element, the corrugated oil tank is manufactured from high-quality cold-rolled thin plates on a dedicated production line. The corrugated fins can expand and contract with the expansion and contraction of the transformer oil volume, thereby isolating the transformer from the atmosphere, preventing and slowing down oil degradation and insulation moisture, enhancing operational reliability, and requiring maintenance for normal operation.

Transformer model meaning

Normal operating conditions of transformer

◇ Altitude not exceeding 1000m;

◇ Ambient temperature: Maximum temperature +40℃; Average temperature in the hottest month +30℃;

◇ The highest annual average temperature is +20℃; the lowest outdoor temperature is -25℃.

Special conditions for use of transformers

◇ Altitude over 1000m;

◇ Ambient temperature: Maximum temperature +40℃; Minimum temperature -45℃;

* Please specify when ordering

Transformer meets the standards

GB 1094.1-1996
GB 1094.3-2003
GB/T6451-1999

GB1094.2-1996
GB1094.5-2003
GB/T 7595-1987

JB/T10088-2004
GB/T 10237-1988
JB/T 3837-1998

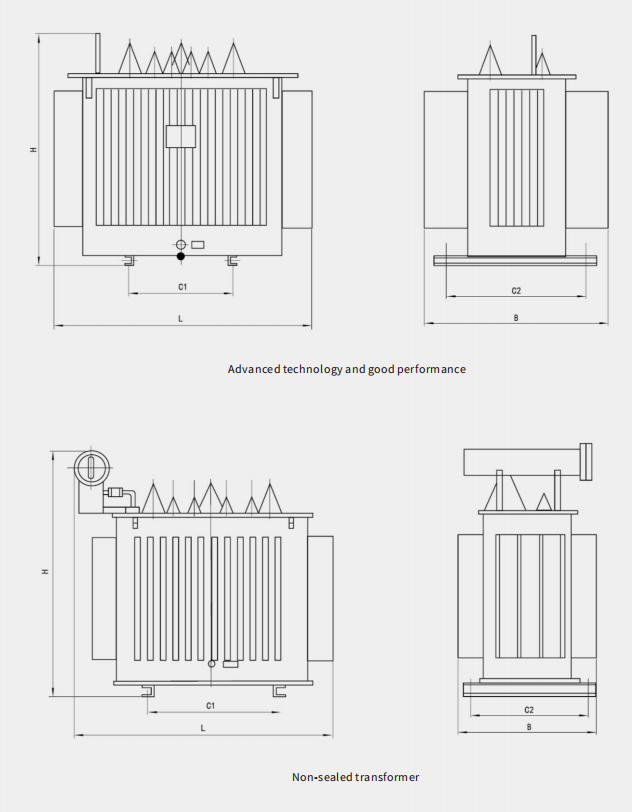

Overall dimensions and installation dimensions

10kV class S11-M Series oil immersed distribution transformer technical parameters

Rated capacitance	Voltage combination (kV)		Connection method	Loss (kW)		No-load electricity flow(%)	Impedance Pressure (%)	weight(Kg)			Dimensions(mm) (Length L×Width B×Height H)	gauge Vertical/ Horizontal
Rated capacitance	high pressure	Low pressure	Connection method	No load	load (75℃)	No-load electricity flow(%)	Impedance Pressure (%)	Heavy	Oil weight	Total weight	Dimensions(mm) (Length L×Width B×Height H)	gauge Vertical/ Horizontal
30	11 10.5 10 6.3 6	0.4	Yy115 or Dyn11	0.1	0.6	2.1	4	185	70	325	750x490x970	450/350
50				0.13	0.87	2		255	85	420	770x550x1030	450/350
63				0.15	1.04	1.9		280	95	480	800x600x1040	450/380
80				0.18	1.25	1.8		320	100	535	810x680x1060	450/430
100				0.2	1.5	1.6		380	110	615	820x680x1100	550/450
125				0.24	1.8	1.5		440	115	690	1070x700x1150	550/470
160				0.28	2.2	1.4		510	130	800	1120x700x1220	550/500
200				0.34	2.6	1.3		610	150	935	1160x720x1255	550/520
250				0.4	3.05	1.2		720	190	1110	1200x760x1310	650/550
315				0.48	3.65	1.1		835	200	1270	1210x780x1320	650/550
400				0.57	4.3	1.0		1010	240	1540	1340x880x1360	650/550
500				0.68	5.15	1.0		1170	260	1765	1360x890x1430	750/600
630				0.81	6.2	0.9	4.5	1375	320	2095	1560x1020x1410	850/660
800				0.98	7.5	0.8		1620	365	2470	1640x1060x1500	850/660
1000				1.15	10.3	0.7		1780	405	2780	1720x1160x1540	850/660
1250				1.36	12	0.6		2065	560	3395	1790x1190x1740	850/660
1600				1.64	14.5	0.6		2470	650	3990	1830x1210x1850	850/700
2000				1.94	18.3	0.6		2700	695	4460	2190x1900x1950	820/820
2500				2.29	21.2	0.6		3230	870	5330	2240x1940x1980	1070/1070

10kV classS11-M Technical parameters of series oil-immersed power transformers

Rated capacitance	Voltage combination (kV)		Connection method	Loss (kW)		No-load electricity flow(%)	Impedance Pressure (%)	weight(Kg)			Dimensions(mm) (Length L×Width B×Height H)	gauge Vertical/ Horizontal
Rated capacitance	high pressure	Low pressure	Connection method	No load	load (75℃)	No-load electricity flow(%)	Impedance Pressure (%)	Heavy	Oil weight	Total weight	Dimensions(mm) (Length L×Width B×Height H)	gauge Vertical/ Horizontal
200	11 10.5 10 6.3 6	6.3 6 3.15	Ydn11	0.34	3.15	1.6	4.5	650	160	1000	1180x740x1270	660/660
250				0.4	3.6	1.7		770	200	1190	1230x780x1340
315				0.48	4.3	1.6		900	215	1360	1260x810x1370
400				0.57	5.2	1.5		1080	260	1650	1380x900x1390
500				0.68	6.2	1.4		1250	280	1890	1400x920x1450
630				0.81	7.3	1.3	5.5	1470	340	2245	1580x1020x1430	820/820
800				0.98	8.9	1.2		1735	385	2645	1665x1070x1520
1000				1.15	10.5	1.1		1910	430	2980	1740x1160x1550
1250				1.36	12.42	1.0		2210	590	3640	1820x1210x1740
1600				1.64	14.85	0.6		2640	680	4270	1840x1240x1860
2000				1.96	17.82	0.9		2890	725	4775	2210x1920x1970
2500				2.31	20.7	0.8		3460	910	8710	2260x1970x1995	1070/1070
3150				2.73	24.3	0.8		4230	1350	7085	2320x2280x2360
4000				3.36	28.8	0.7		5025	1675	8150	2460x2480x2475
5000				3.99	33	0.7		6020	1940	9610	2575x2640x2590
6300				4.76	36.9	0.6		8125	2550	12660	2640x2820x2810
8000				6.52	40.5	0.55		9620	2780	15100	2710x2840x3040	1475/1475
10000				7.70	47.7	0.55		11660	3070	17480	2850x2880x265	1475/1475
