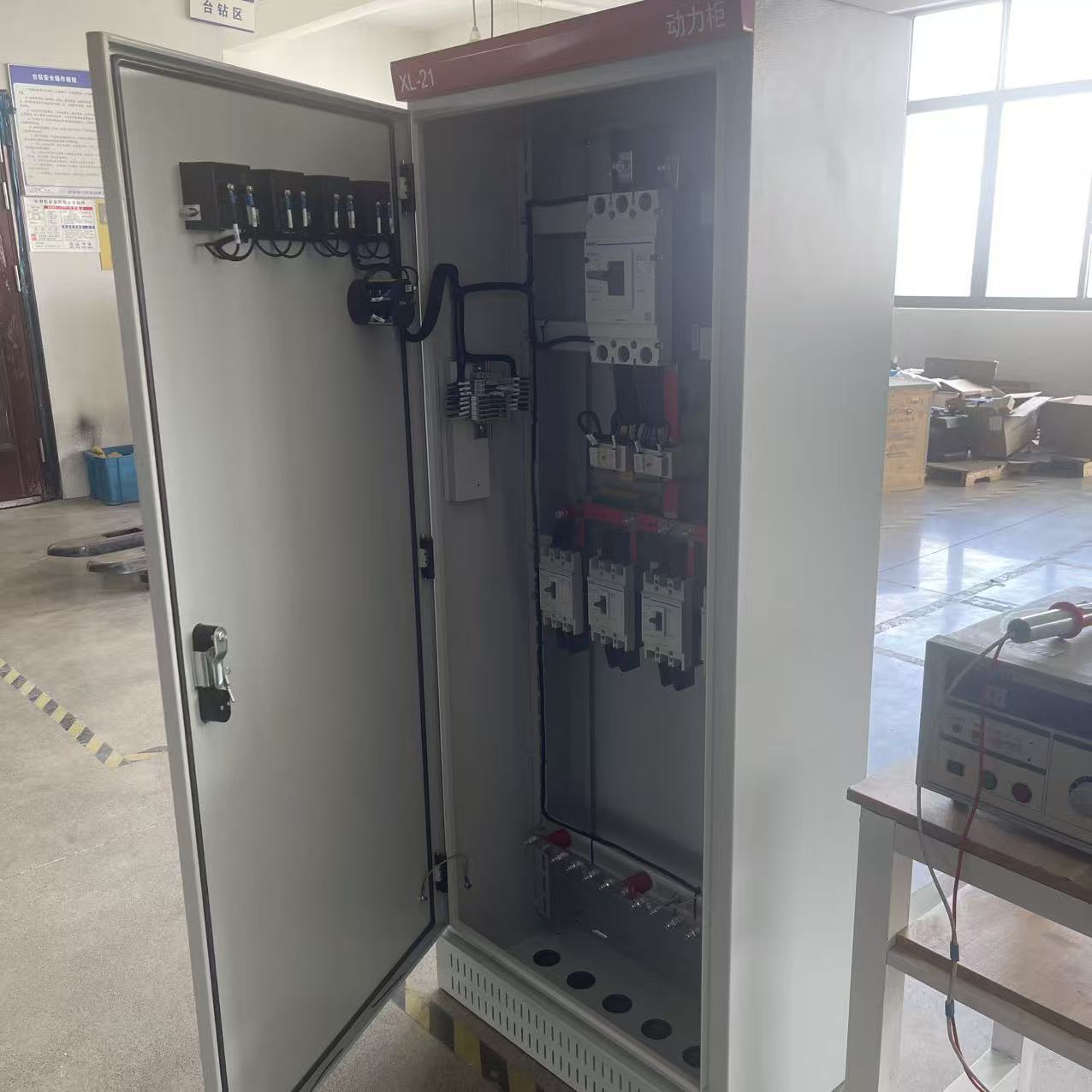

XL‑21 Low‑Voltage Power Distribution Cabinet: Reliable Power for Industry & Construction

Stable power distribution is essential for factories, commercial buildings, construction sites, infrastructure projects, and equipment-intensive facilities. A well-designed XL-21 low-voltage power distribution cabinet helps operators distribute electrical energy safely, protect downstream circuits, and maintain reliable control over motors, lighting, pumps, HVAC systems, and other loads.

As electrical systems become more complex, buyers need more than a cabinet with breakers inside. They need a practical, configurable, and maintainable solution that fits the project’s voltage level, load profile, installation environment, and safety requirements. The XL-21 cabinet is widely selected for these needs because it offers a compact structure, flexible internal arrangement, and dependable low-voltage distribution performance.

What Is an XL-21 Low-Voltage Power Distribution Cabinet?

An XL-21 low-voltage power distribution cabinet is a metal-enclosed electrical distribution assembly designed to receive low-voltage electrical power and distribute it to multiple outgoing circuits. Depending on the project design, it may include incoming isolators, molded-case circuit breakers, miniature circuit breakers, contactors, thermal overload relays, busbars, meters, indicator lights, control switches, surge protection devices, and terminal blocks.

In many applications, an XL-21 distribution cabinet performs both power distribution and basic motor control functions. It can be used for centralized control of pumps, fans, conveyors, ventilation equipment, lighting circuits, and other electrical loads. Its exact configuration should always be based on the single-line diagram, electrical load calculation, operating requirements, and applicable local standards.

The cabinet is generally installed indoors in electrical rooms, workshops, utility areas, plant rooms, or protected industrial locations. For outdoor or high-humidity environments, the enclosure protection rating, anti-corrosion treatment, ventilation arrangement, and cable entry design should be specified carefully.

Why Reliable Low-Voltage Distribution Matters

A low-voltage distribution system is the link between the incoming power supply and the equipment that keeps a facility operating. If distribution equipment is poorly selected or improperly assembled, the result can be nuisance tripping, overheating, difficult maintenance, unplanned downtime, equipment damage, or electrical safety risks.

A properly engineered cabinet supports reliable operation by separating circuits, providing appropriate short-circuit and overload protection, organizing cable connections, and making isolation easier during maintenance. It also gives facility teams a clearer view of system status through meters, indicators, and labeled operating devices.

For industrial and construction users, this reliability directly affects productivity. A stopped pump, fan, production line, or temporary site power circuit can delay operations and increase labor and repair costs. Selecting the right cabinet at the design stage is therefore an investment in safer, more predictable power operation.

Key Advantages of XL-21 Distribution Cabinets

The XL-21 design remains popular because it balances functional electrical protection with a practical cabinet structure. It can be adapted for projects that require simple outgoing feeder distribution or more integrated control arrangements.

One important advantage is configuration flexibility. Components can be selected according to rated current, number of outgoing circuits, motor starting method, metering needs, and protection coordination requirements. This allows engineers and contractors to tailor the cabinet to the actual electrical design rather than relying on a one-size-fits-all solution.

Another benefit is convenient operation and maintenance. Clearly arranged breakers, switches, meters, and terminals can help electricians inspect the system, identify circuits, and perform service work more efficiently. Proper internal wiring, circuit labels, and documentation are especially valuable in facilities where downtime must be minimized.

The enclosure also provides physical protection for electrical components. When designed with suitable material thickness, surface coating, ventilation, grounding, and ingress protection, it helps protect internal equipment from accidental contact, dust, and normal industrial conditions.

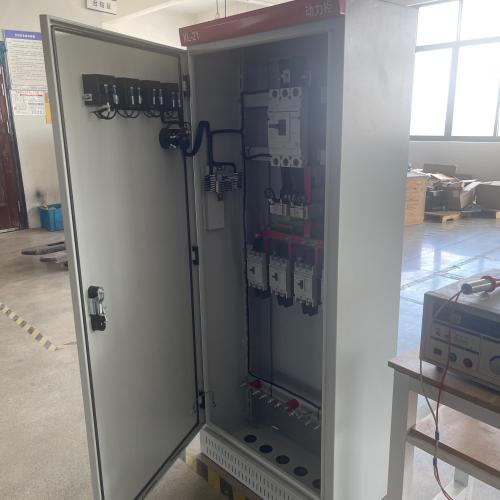

Main Components Inside an XL-21 Cabinet

The internal design of an XL-21 cabinet varies by application, but a professional assembly commonly includes the following functional sections:

• Incoming power section with an isolator, circuit breaker, or switch disconnector
• Copper or aluminum busbar system sized for the required current and fault level
• Outgoing feeder breakers for branch circuits and equipment loads
• Contactors, overload relays, and control devices for motor-operated equipment
• Power meters, ammeters, voltmeters, or multifunction meters where monitoring is required
• Surge protection devices for installations exposed to transient overvoltage risks
• Neutral and protective earth bars with properly identified terminals
• Internal wiring, cable management, terminal blocks, labels, and safety warnings

For motor circuits, the cabinet may include direct-on-line starters, star-delta starters, soft starters, or interfaces for variable frequency drives. The right choice depends on motor power, starting current, process needs, and the capacity of the upstream electrical system.

Application Fields of XL-21 Low-Voltage Cabinets

Because of their adaptable structure, XL-21 cabinets can serve a broad range of low-voltage distribution and control applications. They are commonly used in manufacturing plants, machinery workshops, warehouses, commercial buildings, water treatment stations, agricultural facilities, mining support areas, construction projects, and utility systems.

In industrial plants, an XL-21 cabinet may distribute power to machine tools, conveyors, exhaust fans, compressors, and process equipment. In building services, it can support pumps, ventilation units, lighting panels, and auxiliary systems. On construction sites, it can provide organized distribution to temporary equipment, work areas, and site facilities when designed for the relevant environment and safety rules.

For water supply and wastewater projects, these cabinets are frequently applied to pump control and distribution. In these cases, control logic, float switches, pressure switches, automatic/manual selectors, alarm functions, and backup power arrangements may be integrated according to the operating process.

How to Select the Right Low-Voltage Power Distribution Cabinet

Choosing a cabinet should begin with electrical data, not only external dimensions or price. A qualified supplier should review the project’s electrical drawings and confirm the technical parameters before production.

First, determine the rated voltage, frequency, incoming supply type, and total connected load. Then calculate demand load and consider future expansion capacity. The rated current of the incoming device, busbars, and outgoing feeders must be suitable for the actual operating condition.

Second, confirm the prospective short-circuit current at the installation point. The selected breakers, busbar supports, and cabinet assembly must have adequate short-circuit withstand and breaking capability. This is a critical safety issue and should not be estimated without engineering information.

Third, consider the environment. Indoor clean-room installation, a humid pump room, a dusty workshop, and an outdoor construction area require different enclosure protection levels and material treatments. Buyers should discuss IP rating, ventilation, anti-condensation measures, ambient temperature, altitude, corrosion exposure, and cable entry direction with the manufacturer.

Finally, define operational expectations. If the facility requires energy monitoring, remote status indication, automatic transfer, motor protection, or PLC communication, these functions should be included in the technical proposal from the beginning.

Technical Details Buyers Should Confirm Before Ordering

To avoid mismatches during installation, provide as much project information as possible. Useful documents include a single-line diagram, load list, control schematic, layout drawing, and equipment schedule. If these are unavailable, a reliable manufacturer can usually help prepare a preliminary configuration after receiving the essential site details.

Important specifications include rated voltage, rated current, number and size of outgoing circuits, breaker brand preference, busbar material, enclosure dimensions, mounting method, ingress protection rating, cable entry position, meter requirements, and control functions. It is also useful to confirm painting color, nameplate language, spare parts, factory testing scope, and required certificates.

For international projects, confirm which standards apply in the destination market. Depending on the application and region, the cabinet may need to align with relevant IEC, local electrical, fire safety, and installation requirements. Compliance claims should be supported by clear documentation and verified against the project specification.

Safety and Maintenance Considerations

Even a high-quality cabinet requires correct installation and regular maintenance. Installation should be performed by qualified electrical personnel who can verify grounding, cable termination torque, phase sequence, insulation condition, protective device settings, and functional operation before energization.

During operation, maintenance teams should inspect the cabinet periodically for loose connections, discoloration, abnormal heat, moisture, dust accumulation, damaged insulation, and unusual breaker behavior. Thermal scanning can be useful for identifying high-resistance connections or overloaded components before a failure occurs.

Electrical work should follow lockout/tagout procedures and applicable safety regulations. Only authorized personnel should open or service energized equipment. Circuit labels, updated drawings, and maintenance records make future troubleshooting faster and safer.

Why Customization Adds Real Value

Standard cabinet designs are useful as a starting point, but many projects benefit from custom engineering. A customized XL-21 distribution cabinet can match the site’s cable routing, available installation space, maintenance access, control requirements, and preferred component brands.

Customization may include top or bottom cable entry, single-door or double-door construction, separate incoming and outgoing compartments, local/remote control modes, digital metering, alarm indicators, automatic changeover functions, or communication interfaces for building management and industrial monitoring systems.

The best solution is not necessarily the cabinet with the most components. It is the cabinet that provides the required protection, operating visibility, safety margin, and expandability without adding unnecessary complexity or cost.

Frequently Asked Questions

What is an XL-21 low-voltage power distribution cabinet?

It is a metal-enclosed electrical cabinet used to distribute low-voltage power from an incoming supply to multiple outgoing circuits. It can also include protection, metering, and motor control components depending on the project requirements.

What voltage is used for an XL-21 cabinet?

The voltage depends on the local power system and project design. Many low-voltage systems operate at common three-phase levels such as 380 V, 400 V, or 415 V, but the required rated voltage must be confirmed for each application.

Can an XL-21 cabinet be used for motor control?

Yes. It can be configured with contactors, overload relays, starters, control switches, and other components for pumps, fans, conveyors, and similar motors. The control design should be based on motor rating and operational requirements.

How do I choose the appropriate IP rating?

The required IP rating depends on the installation environment. Clean indoor electrical rooms may need a lower protection level than dusty workshops, humid utility rooms, or outdoor areas. Consider dust, water exposure, ventilation, heat dissipation, and maintenance access when selecting the enclosure.

What information should I send to a cabinet supplier?

Send the single-line diagram if available, along with rated voltage, total load, incoming current, outgoing circuit details, short-circuit data, installation location, enclosure rating requirements, control functions, and any preferred brands or standards. This helps the supplier provide an accurate technical proposal and quotation.

An XL-21 low-voltage power distribution cabinet provides a dependable foundation for safe, organized, and efficient electrical distribution in industrial, commercial, and construction environments. By matching the cabinet’s rating, protection devices, internal layout, enclosure design, and control functions to the actual project conditions, buyers can reduce electrical risks, simplify maintenance, and support long-term operational reliability.
