What is a Switching Station?
A switching station acts as a "transfer hub" in the power system. It receives a power supply from a substation and uses multiple sets of switchgear inside to redistribute and dispatch electricity to different consumption areas. Typically handling 10kV or 20kV power, it does not perform voltage transformation but focuses on distributing and switching power lines.
A typical switching station mainly includes the following equipment:

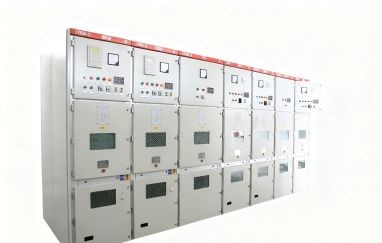

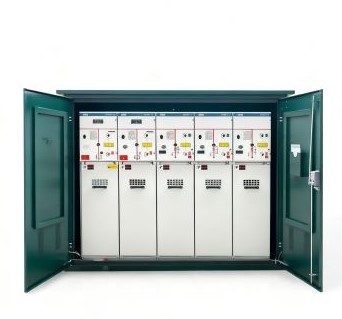

Switchgear: This is the "core organ" of the station, including circuit breakers, isolators, and load switches. It is responsible for connecting, disconnecting, and protecting circuits. When a line fault occurs, the switchgear quickly acts to isolate the faulty section, ensuring normal power supply to other lines.
Busbars: These are conductors that collect and distribute electrical energy. All incoming and outgoing power flows through them.
Instrument Transformers: Including current transformers and voltage transformers. They convert high currents and high voltages in the system proportionally into standardized low currents and low voltages for measurement, monitoring, and protection.
Protection and Control Equipment: Such as relay protection devices, control power supplies, and signaling systems. They continuously monitor the operating status of all equipment and immediately issue commands to handle any abnormalities, ensuring safety.
Auxiliary Facilities: Including grounding, lighting, ventilation, and fire protection systems, providing a Safe and Reliable operating environment for all electrical equipment.
Switching stations are widely used in various applications:
Urban Power Supply Networks: They "split" one power source into multiple sources to supply different areas or buildings.
Industrial and Commercial Power Consumption: Large factories, shopping malls, and other high-power consumers often build their own switching stations to receive and distribute power from the grid.
Railway Traction Power Supply: Electrified railways set up switching stations along the lines to distribute power to traction substations, ensuring stable train operation.
Distributed Power Integration: With the development of wind, solar, and other new energy sources, switching stations can serve as connection points for integrating distributed power into the grid.
Switching stations are used for receiving and distributing electrical energy without voltage transformation. They enhance the reliability, flexibility, and safety of the power supply system and are widely applied in urban, industrial, transportation, and other fields, making them an indispensable component of the power grid. If you are interested, please feel free to consult us. With years of research and development, our switching stations have been successfully implemented in many locations.
