What Is a Compact Substation? Advantages and Applications

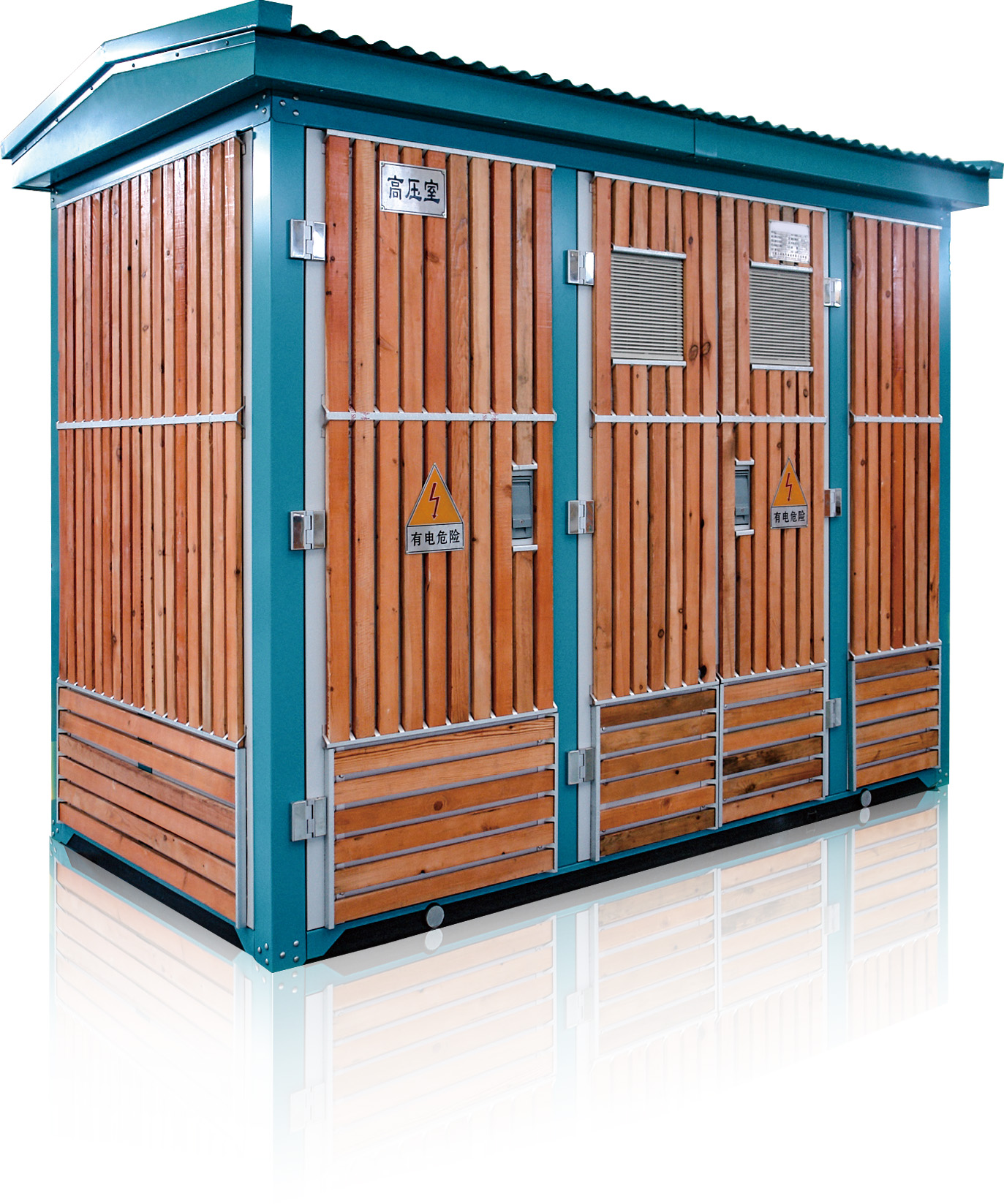

A compact substation, also referred to as a prefabricated or package substation, is an integrated power distribution solution. It combines three essential components—Medium Voltage (MV) switchgear, a transformer, and low voltage (LV) switchgear—within a single enclosed unit. Compact substations are utilized to convert and distribute electrical energy from a utility source to end users.
Unlike traditional substations, compact substations feature a modular design, resulting in a space-efficient, simple-to-install solution that is adaptable to varying environmental needs. They serve as a modern alternative to conventional substations, offering significant operational and spatial advantages.
A compact substation consists of the following core parts:
This equipment handles power input, control, and protection. It ensures the secure distribution of incoming electricity from the power grid or primary sources.

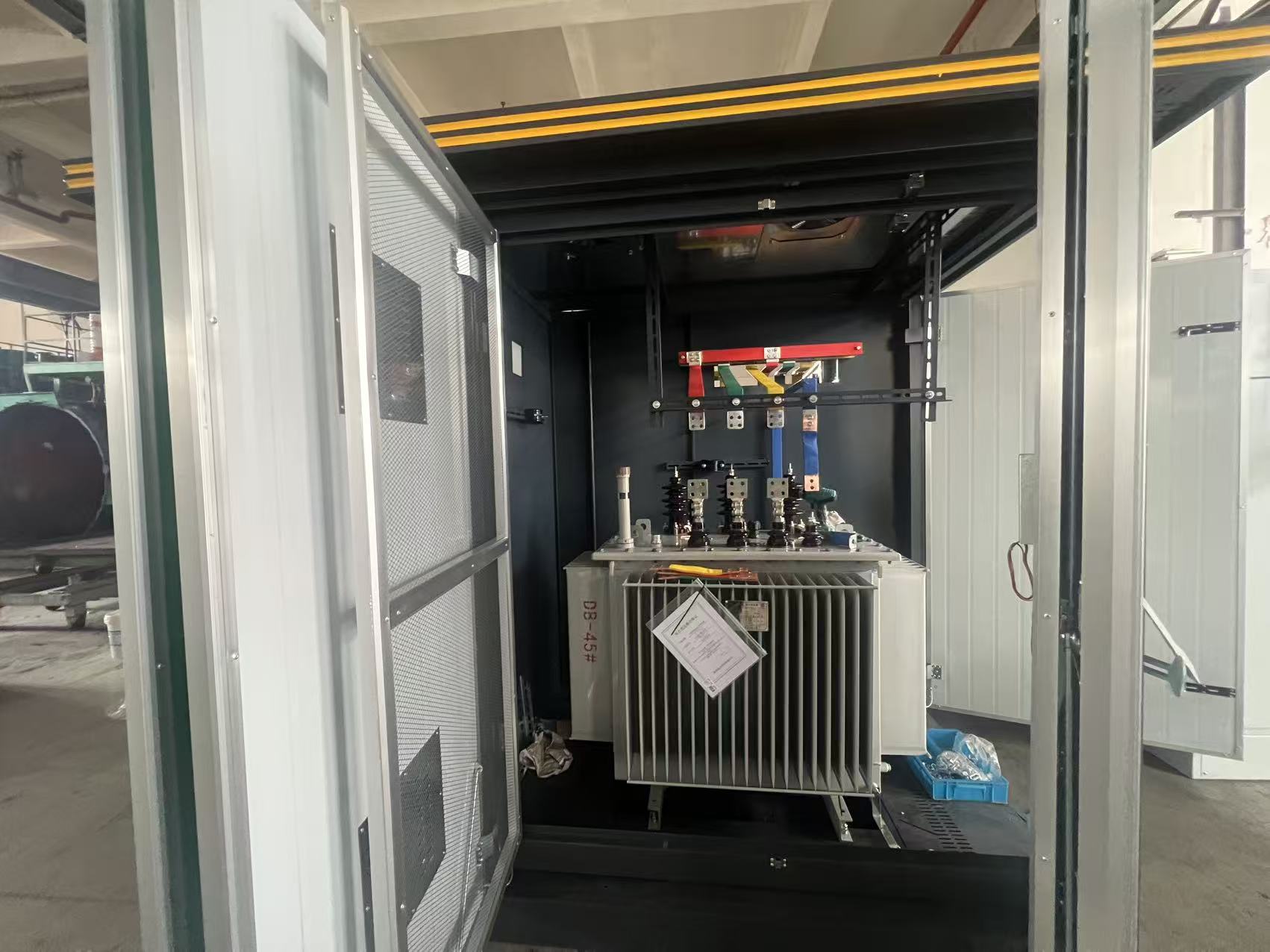

The transformer converts the high or medium input voltage from the supply system into lower voltage levels suitable for end users. It is the primary component that facilitates voltage regulation and protects downstream systems.
This component distributes electricity to end users, providing critical control and safety features to prevent system failures.
The enclosure houses the above components and includes systems for ventilation, cooling, protection, and insulation. Its design ensures the substation operates reliably under diverse environmental conditions.
Compact substations provide numerous benefits, making them a preferred choice for various industries.
Compact substations are versatile and widely used in the following sectors:
4.1 Industrial Plants: Factories and manufacturing facilities rely on compact substations for uninterrupted power supply to support their operations.
4.2 Commercial and Residential Buildings: Compact substations are essential for supplying power to multistory office buildings, shopping malls, and residential communities.
4.3 Infrastructure and Public Works: They are suitable for airports, metro systems, highways, bridges, and other infrastructure projects.
4.4 Renewable Energy: Solar farms, wind turbines, and other renewable energy projects use compact substations for power collection and efficient grid integration.
4.5 Urban Power Distribution: Compact substations are perfect for reinforcing electricity systems in densely populated areas with limited space.
4.6 Temporary Solutions: Ideal for construction sites, temporary events, or mobile power supply scenarios, compact substations offer a portable and efficient solution.
Compact substations offer distinct advantages over conventional designs. Unlike traditional substations, which require extensive on-site construction, compact substations are pre-assembled and shipped as modular units. This approach minimizes installation efforts and significantly reduces the space required. Their shorter setup times and ability to operate in various conditions make compact substations highly practical for modern power demands.
Choosing the right compact substation is essential for ensuring optimal performance and long-term durability. The following factors should be carefully assessed:
6.1 Rated Capacity and Voltage Levels
Ensure the substation supports the necessary power demand and voltage requirements.
6.2 Installation Conditions
Decide whether the substation will be installed indoors or outdoors.
6.3 Environmental Factors
Consider temperature, humidity, dust levels, and other operational challenges unique to your location.
6.4 Protection Specifications (IP Rating)
Choose a substation with adequate insulation and protection against external elements such as water and dirt.
6.5 Load Characteristics
Evaluate load behavior and ensure compatibility with your system’s requirements.
6.6 Customization and Scalability
Opt for configurations that allow expansion or modification as the scope of your project evolves.
Thoroughly addressing these considerations helps optimize power distribution, operational efficiency, and overall system reliability.
As an experienced manufacturer of power distribution systems, we offer industry-leading compact substations tailored to meet your specific needs. Our solutions include:
- - High-quality compact substations compliant with international standards
- - Integrated systems featuring MV switchgear, LV switchgear, transformers, and auxiliary components
- - Custom-engineered designs based on project requirements
- - Flexible OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services
- - Reliable production and timely delivery
- - Comprehensive technical support to assist your project at every stage
With their space-saving design, rapid installation process, and exceptional adaptability, compact substations offer significant advantages over traditional alternatives. As demand continues to rise, these innovative systems will remain a vital component in the evolution of modern power networks.
