The Core Roles of Grid-Connection Cabinets, Substations, and Transformers in Photovoltaic Power Stations
It can generate electricity whenever sunlight is available, significantly enhancing energy self-sufficiency. Any large-scale photovoltaic power station requires a precise and reliable electrical system for power distribution and protection. Among the components, grid-connection cabinets, substations, and transformers play crucial roles.
The transformer is the first and most critical step in achieving efficient long-distance power transmission in a PV system.
It enables voltage conversion. For instance, PV modules generate direct current, which is converted into alternating current by inverters, typically at a relatively low voltage. To transmit this low-voltage electricity to the high-voltage grid, our step-up transformer is needed to raise the voltage to the grid-connection level. The main task of the transformer is to boost the low-voltage electricity from the inverter output to a higher voltage level that matches the local grid. Pad-mounted substations centrally collect large amounts of electricity and significantly boost the voltage, serving as the core equipment for large-scale ground-mounted power plants. This helps reduce transmission losses. According to Joule's Law, for transmitting the same power, higher voltage results in lower current, and thus lower thermal losses (I²R) in the lines. By boosting the voltage through transformers, power loss during transmission from remote PV arrays to the grid connection point is greatly minimized, directly enhancing the power station's generation efficiency and economic benefits.

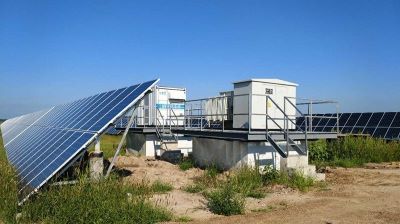

If the transformer is merely a single voltage booster, then the substation acts as a fully functional regional dispatch center.It collects, protects, monitors, and distributes power, ensuring the safety of transmission. Large-scale PV plants usually feature one or multiple pad-mounted step-up substations. These are not just a single transformer but an integrated electrical unit. They aggregate electricity from multiple circuits (multiple inverters). They are typically equipped internally with high-Voltage Switchgear (such as load switches, circuit breakers), surge arresters, and relay protection devices, responsible for protecting the transformer and output lines from overcurrent, short circuits, overvoltage, etc. They also provide essential measurements (voltage, current, power) and signal indications, facilitating operational monitoring for maintenance personnel. The substation integrates and elevates the dispersed, low-voltage PV electricity into a stable, controllable high-voltage power source. It provides a secure operating environment for the transformer and serves as the local high-voltage interface for grid connection, forming the cornerstone of the entire power station's safe operation.
The grid-connection cabinet represents the final and most critical interface between the PV power station and the public grid. Its function is safe grid integration and isolation. When grid-connection conditions are met (synchronized voltage, frequency, phase), it closes the circuit breaker to smoothly feed the electricity generated by the PV station into the grid. In the event of grid faults or required maintenance, it can quickly disconnect to ensure safety on the grid side. Anti-islanding protection is its core safety function. If the grid loses power due to a fault, the grid-connection cabinet must rapidly detect this situation and immediately trip the connection to the grid, preventing the PV station from continuing to power a localized section of the grid. This avoids endangering maintenance personnel and damaging equipment. The performance and functionality of the grid-connection cabinet are directly related to grid stability and safety and must strictly comply with the grid company's grid-connection technical specifications. It is the "pass" that allows the PV power station to obtain permission and legally sell electricity to the grid.
In PV projects, the transformer, substation, and grid-connection cabinet are interlinked and indispensable. Together, they form a complete chain from "self-generation" to "stable grid feed-in." Their selection, quality, installation, and commissioning directly determine the PV power station's generation efficiency, operational lifespan, and ultimate return on investment. Therefore, the importance of these key electrical equipment in the design and construction phases of PV projects cannot be overemphasized. Our company, Hangbian Electric Power Technology Co., Ltd., has participated in numerous projects. We welcome your inquiries.
