Principles and Applications of Delta and Wye Connections

In modern power systems, three-phase circuits form the basis for the transmission, distribution, and utilization of electrical energy. Among them, Delta and Wye, the two fundamental three-phase connection methods, significantly influence system performance, safety, and efficiency. Understanding their principles and characteristics is crucial for electrical engineers, system designers, and decision-makers in related industries.

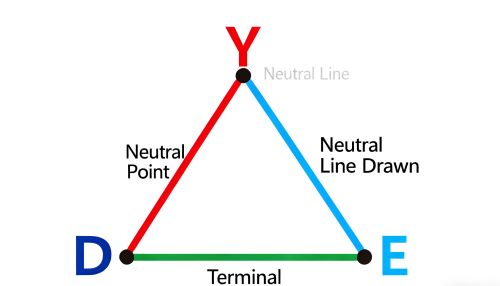

From a structural perspective, the Delta connection links the three-phase windings or loads end-to-end, forming a closed triangular loop. This topology has no neutral point, with the three phases constituting an independent cyclic path. In contrast, the Wye connection joins one end of each phase to a common neutral point, with the other ends connected to the power source, creating a "Y"-shaped structure. The neutral point can be extended to form a neutral line. These two distinct connection methods result in differing electrical characteristics.

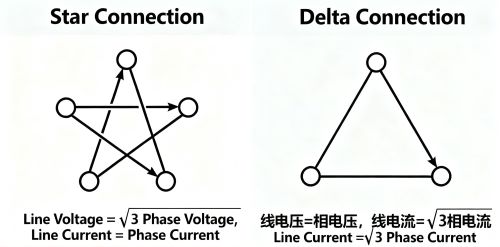

In terms of voltage and current relationships, assuming the rated voltage per phase winding of a transformer is U₁ and the rated current is I₁ under the same grid conditions:In a Wye connection, the line voltage (voltage between phases) is √3 times the phase voltage (voltage across the winding), expressed as U_line = √3U₁, while the line current (current in the outgoing lines) equals the phase current (current within the winding), expressed as I_line = I₁.In a Delta connection, the line voltage equals the phase voltage (U_line = U₁), while the line current is √3 times the phase current, expressed as I_line = √3I₁.Simply put, the Wye connection is suitable for "high voltage, low current" scenarios, whereas the Delta connection is better suited for "low voltage, high current" scenarios.

Regarding operational stability:The Wye connection, with its neutral point, helps "balance voltage" during three-phase load imbalances (e.g., uneven distribution of residential loads), preventing excessive or insufficient voltage in any phase and protecting electrical equipment. However, the windings in a Wye connection withstand higher voltages, demanding better insulation performance.

The Delta connection lacks a neutral point. When three-phase loads are unbalanced, voltage fluctuations are more likely to occur. However, its windings carry lower currents, reducing insulation stress. Additionally, if a winding fault occurs in one phase, the transformer can continue operating temporarily in an "open-phase" mode (requiring prompt repair), offering higher reliability.

Safety and grounding methods are critical considerations when selecting a connection topology.The Wye connection allows direct grounding of the neutral point, effectively lowering the system's ground potential and limiting voltage rise during faults. This approach is more favorable for personnel and equipment safety, with relatively lower insulation requirements.

Delta-connected systems are typically ungrounded or floating. During a single-phase ground fault, the other two phases experience an increase in ground voltage up to the line voltage, imposing higher insulation demands on the system. However, in specific applications, this configuration offers advantages in power supply continuity.

Today, with the rapid development of renewable energy and power electronics, the choice between Delta and Wye connections has gained new significance. Photovoltaic inverters often adopt Wye outputs for convenient grounding protection, while various converters flexibly select or integrate these topologies based on grid standards, efficiency optimization, and electromagnetic compatibility requirements. Future system design is no longer a binary choice but rather a comprehensive evaluation and intelligent configuration based on specific voltage requirements, harmonic environments, safety standards, and scalability.
