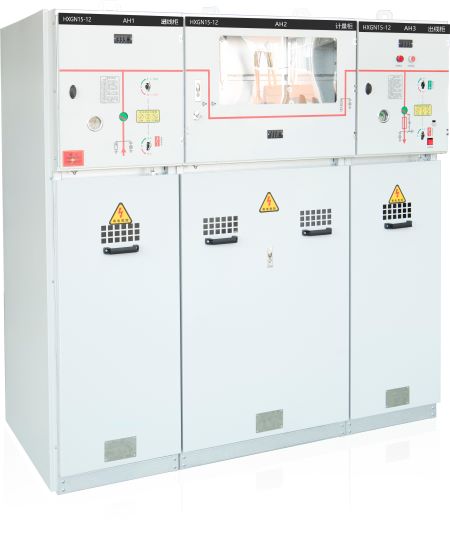

Key Design Points for Modular Gas-Insulated Switchgear (GIS) Cabinets

GIS cabinets are inherently more compact than their air-insulated counterparts due to the use of gas, typically sulfur hexafluoride (SF6), which allows for smaller distances between live parts. Modular designs should further capitalize on this by optimizing the layout for maximum space efficiency. This compact nature is particularly advantageous in urban environments or confined spaces where floor space is limited.

Modular GIS cabinets must be designed for seamless integration into existing systems and easy scalability. This means they should support the addition of modules without requiring significant system disruptions. Scalability is crucial for utilities and industrial applications where load demands can increase over time. The design should ensure that new modules can be added with minimal physical alterations and downtime.

The use of SF6 gas as an insulating medium in GIS provides excellent arc-quenching properties and insulation strength. However, safety remains a top priority. Modular GIS cabinets should incorporate features such as pressure relief devices, secure gas compartments, and robust sealing technologies to prevent gas leakage. Additionally, advanced monitoring systems should be included to detect and alert operators to any anomalies in gas pressure or quality.

GIS cabinets are often used in challenging environments, from industrial facilities to outdoor installations. The modular design must account for environmental protection, ensuring that the cabinets are resistant to dust, moisture, and other potentially harmful elements. This can be achieved through weatherproof enclosures, corrosion-resistant materials, and IP-rated sealings to safeguard the components inside.

Despite their compact size, GIS cabinets generate heat during operation. Effective thermal management is necessary to maintain performance and extend the equipment’s lifespan. This can involve the integration of cooling systems or designing the modules for optimal airflow to dissipate heat efficiently. The goal is to maintain a stable operating temperature that does not compromise the reliability of the Switchgear.

Modular GIS designs should prioritize ease of installation and maintenance. This includes straightforward assembly instructions, pre-fabricated modules, and clear labels for connections. For maintenance, the cabinets should allow easy access to components without the need to dismantle the entire system. Quick-disconnect features and modular components that can be swapped or serviced individually can save time and reduce maintenance-related downtime.

Incorporating digital technology into GIS cabinets enhances their functionality and facilitates smarter grid operations. Modular designs should accommodate sensors, communication interfaces, and control systems to enable remote monitoring and predictive maintenance. Smart GIS systems can provide real-time data and analytics, improving operational efficiency and reducing the risk of unexpected failures.
