Is a transformer a switchgear?

In building stable and efficient power systems, both transformers and Switchgear are indispensable key equipment. However, there are fundamental differences between the two in terms of function, principle, and application. Understanding these differences is crucial for the design of power systems, equipment selection, and operational safety.

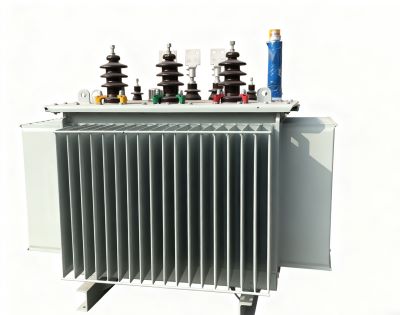

Although both are installed in substations or distribution rooms, they undertake completely different missions. A transformer is an energy conversion device. Its fundamental task is to increase or decrease the voltage level of alternating current using the principle of electromagnetic induction without changing the frequency. It enables the economical, efficient transmission and rational distribution of electrical energy. For instance, power plants use step-up transformers to significantly increase voltage, thereby reducing line losses during long-distance transmission; on the user side, step-down transformers reduce the voltage to levels safe for use in factories or households. It is a passive, continuously operating energy conversion device focused on changing voltage.

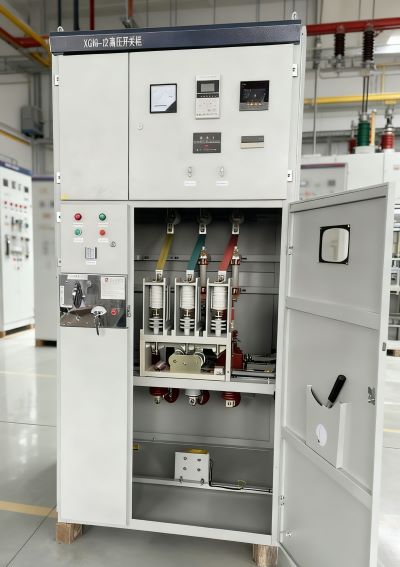

Switchgear is a combination of control and protection equipment. It integrates components such as circuit breakers, isolating switches, protective relays, and measuring instruments internally, primarily undertaking the tasks of connecting, interrupting, protecting, and isolating circuits. Its main function is to ensure the safety and controllability of the power system. When a line experiences overload or short-circuit faults, the circuit breaker inside the switchgear acts rapidly to cut off the current, protecting the upstream power source and downstream equipment. It also provides a visible, safe electrical isolation point for maintenance personnel. It is an active, command or trigger-based control and protection system, focused on "managing the circuit."

Transformers and switchgear work in coordination, each performing its own role. In a typical power distribution process: high-voltage electricity first enters through the switchgear for connection and protection, then is fed into the transformer to be reduced to a suitable voltage. The stepped-down electrical energy is again distributed and controlled through switchgear on the other side before finally being delivered to various loads. The two closely cooperate to jointly build a Safe and Reliable power network.

Understanding why correctly distinguishing between transformers and switchgear is crucial: power system design must first determine the transformer's capacity and voltage ratio based on the load, and then configure switchgear with corresponding voltage levels and interrupting capabilities for protection accordingly. Conceptual confusion may lead to design errors, such as protection setting mismatches. Daily maintenance for transformers primarily focuses on temperature rise, oil level (if applicable), and insulation status; whereas the maintenance focus for switchgear lies in the sensitivity of the operating mechanism, contact condition, and calibration of protection functions. Their maintenance procedures and safety hazards are entirely different. A deep understanding of the differences and connections between transformers and switchgear is the fundamental prerequisite for ensuring maximized power investment benefits and safe, reliable system operation.
