Delta Wye Transformer: Working Principle, Advantages & Industrial Application Guide
Three phase transformers are the backbone of modern industrial power distribution. The winding connection mode directly determines output voltage stability, grounding capability, fault tolerance and overall system design. Among mainstream configurations, the delta wye transformer is the most widely adopted solution. Many engineers also frequently compare wye delta wye transformer and delta delta wye transformer layouts to match site power demands for different commercial and industrial projects.
Main Three Phase Transformer Connection Types

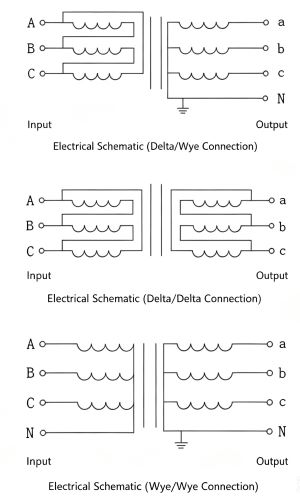

Three standard winding schemes dominate power projects: Delta/Wye (Δ/Y), Delta/Delta (Δ/Δ), and Wye/Wye (Y/Y). Each three phase delta transformer configuration delivers unique electrical performance and fits specific grid and load conditions.
- Delta Wye Connection (Δ/Y)
The primary winding adopts delta connection, while the secondary side uses wye connection. This delta y transformer allows neutral point extraction, supporting single-phase and three-phase simultaneous power supply. It suppresses third harmonic currents effectively, improving power quality and reducing electrical interference. This configuration is the preferred choice for distribution substations, commercial buildings and factory power supply systems.
- Delta Delta Connection (Δ/Δ)
The delta delta connection of three phase transformer features delta wiring on both primary and secondary windings. It has strong overload resistance and can run under open delta connection of three phase transformer in emergency situations. An open delta transformer can still deliver partial power when one winding fails, which is ideal for small industrial loads that cannot afford full power shutdown.
- Wye Wye Connection (Y/Y)
Wye connection on both sides enables high-voltage transmission. However, it lacks natural suppression for third harmonics, so it is generally equipped with a tertiary winding in high-capacity equipment. This structure is more common in long-distance power transmission scenarios rather than on-site industrial distribution.
Delta Wye VS Delta Delta VS Wye Wye Transformer
| Connection Type | Core Strengths | Typical Application |
| Delta Wye Transformer | Available neutral line, low harmonic distortion, versatile voltage output | Urban distribution, shopping malls, office parks, general factories |
| Delta Delta Transformer | Emergency open delta operation, stable three-phase voltage, strong overload resistance | Old industrial workshops, machinery manufacturing plants, continuous production lines |
| Wye Wye Transformer | Suitable for high voltage and long-distance power transmission | Large power grid transmission projects, high-level power stations |
Key Selection Guidance
When choosing a wye delta transformer bank or delta delta transformer, prioritize your load types and system design goals. If your project requires both three-phase motor equipment and single-phase lighting or socket loads, a delta wye transformer is the most balanced option. For production lines that require high power supply reliability and allow partial-load emergency operation, the delta delta structure with open delta backup capability is more suitable. For high-voltage grid transmission scenarios, the wye wye configuration remains the standard choice.
Frequently Asked Questions
Q: How do I know if I have Delta or Wye?
A: Check the transformer terminal marking and wiring diagram. Wye connection has a common neutral connection point, while delta wiring forms a closed triangular loop without inherent neutral access. You can also test winding continuity to identify internal structure accurately.
Q: Is 240V delta or wye?
A: 240V power systems exist in both delta and wye configurations. Single-phase 240V is widely used, while three-phase 240V usually adopts delta connection without a neutral line. Always confirm according to local grid standards and transformer nameplate parameters.
Q: Is 480 volts delta or wye?
A: 480V three-phase power is commonly configured as delta in North American industrial sites for heavy equipment loads. Some commercial power systems adopt 480V wye connection with neutral terminals for mixed loads. The official wiring diagram and nameplate are the most credible judgment basis.
Q: Can you use a wye transformer as a Delta?
A: It is not allowed to convert casually. Wye and delta windings have fixed internal structures, turns ratios and voltage design logic. Random rewiring will cause voltage deviation, equipment overheating and even permanent winding damage. Professional electrical calculation and structural verification are required before any modification.
Summary
Different three-phase transformer connection types including delta wye, delta delta, and wye wye structures carry distinct electrical characteristics and application boundaries. The delta wye transformer remains the top choice for most commercial and industrial distribution systems, thanks to flexible neutral output and good harmonic suppression. The delta delta design shines in scenarios requiring emergency open delta operation to avoid complete power outage. Meanwhile, wye wye transformers are mainly deployed for high-voltage long-distance power transmission. Engineers should match the winding connection mode with grid parameters, load composition and reliability requirements to build a safe, stable and cost-effective power distribution system.
