Capacitor Compensation Cabinet: Reactive Power Compensation is the Core

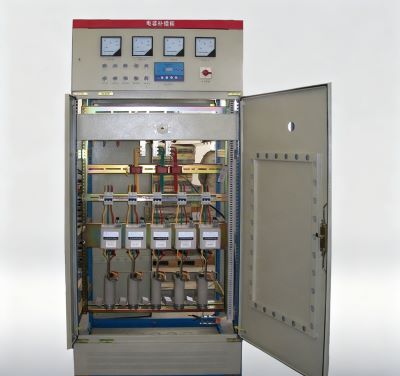

A capacitor compensation cabinet is a reactive power compensation cabinet, a specialized electrical equipment used to compensate for the reactive power generated by user's electrical equipment, aimed at improving grid efficiency, enhancing power quality, and reducing line losses. It primarily automatically switches capacitors connected in the cabinet's circuit on or off based on the power factor, to offset the ineffective electrical energy generated by electrical equipment, making energy transmission in the grid more efficient.

So, what is its principle? Inductive loads in the power grid, such as motors, need to "absorb" reactive power from the grid to establish a magnetic field during operation. Power capacitors, during operation, release reactive power into the grid. The core principle is the mutual compensation between the "absorption" of inductance and the "release" of capacitance. The reactive power compensation cabinet continuously monitors the grid's power factor through a controller. When the power factor is too low, it automatically switches in one or multiple sets of capacitors. The capacitive reactive power released by the capacitors exactly compensates for the inductive reactive power absorbed by the inductive loads, resulting in the grid only needing to provide a small amount of reactive power, thereby improving the power factor.

Why improve compensation? If the power factor is lower, the active power becomes less, and the reactive power increases, leading to side effects. For example, power quality may not be high, and there might even be penalties from the power department. Conversely, if the reactive power decreases, the benefits become increasingly evident.

It can increase the power supply capacity of equipment: Power supply equipment like transformers have certain capacity limits, their apparent power S = UI. When the power factor is low, the active power that the equipment can output is limited. By improving the power factor through reactive power compensation, the equipment can output more active power under the rated capacity, enhancing the equipment's power supply capability.

It can also reduce equipment costs, for example, by reducing transformer capacity. After the power factor is improved, less apparent power is required to transmit the same amount of active power, allowing for the selection of a transformer with a smaller capacity, reducing the investment cost of the transformer. Reduce line investment: Since reactive power compensation can reduce line current, conductors with a smaller cross-sectional area can be selected, lowering line construction costs and also reducing line maintenance costs.

It can also improve the stability of the power system, enhancing the system's ability to resist interference: When the power system is disturbed, the balance of reactive power is crucial for system stability. The capacitor compensation cabinet can quickly regulate reactive power, helping the system quickly return to a stable state after being disturbed, thereby improving the system's anti-interference capability.

It can also meet the requirements of the power department. Avoid penalties: To improve grid operation efficiency and quality, the power department has certain requirements for users' power factor. If the user's power factor does not meet the standard, the power department will impose penalties. By installing a capacitor compensation cabinet for reactive power compensation, the power factor can meet the specified standards, avoiding penalties.

In summary, reactive power compensation performed by capacitor compensation cabinets is of great significance for improving the operational efficiency of the power system, enhancing power quality, reducing costs, improving stability, and meeting the requirements of the power department. It is an indispensable and important part of the power system.

In conclusion, a precisely matched capacitor compensation cabinet is by no means an additional cost but a highly cost-effective energy-saving investment. As your professional complete power distribution solution partner, Hangbian Electric considers reactive power compensation as a core design consideration in every set of power distribution equipment we deliver. We deeply understand that a stable and efficient power system begins with precise control over every detail. Contact us to let our engineers customize the most economical reactive power compensation solution for you.
