Anti-corrosion Design for Prefabricated Box Transformers

Outdoor power equipment in regions such as the Middle East and South Central Asia is constantly exposed to some of the most extreme and challenging natural environments on the planet. In the Middle East, the combination of intense ultraviolet (UV) radiation, frequent sandstorms, and dry saline-alkaline soil poses significant threats to equipment performance and longevity. Meanwhile, South Central Asia is characterized by high temperatures, excessive humidity, heavy rainfall, and the relentless corrosion from coastal salt fog. These adverse environmental conditions can severely impair the functionality of outdoor power equipment, resulting in rust, corrosion, aging, water ingress, and compromised performance of both the exterior casing and internal components.

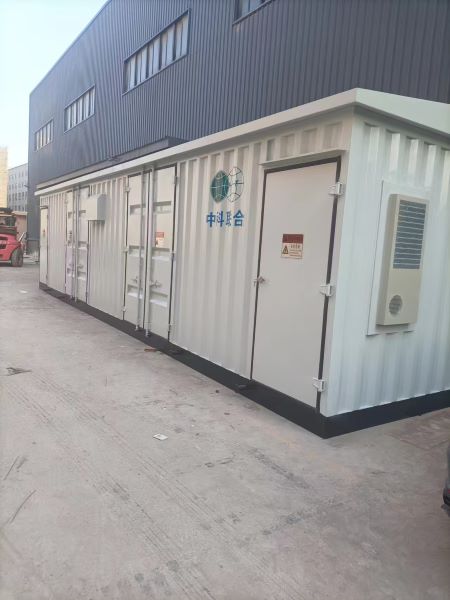

As a key piece of integrated outdoor power distribution equipment, widely deployed in photovoltaic power stations, industrial parks, and urban residential areas, prefabricated box-type transformers require robust structural designs to ensure long-term, trouble-free reliability against these environmental challenges. This article explores the advanced weather-resistant and anti-corrosion structural solutions engineered specifically for such transformers to thrive in harsh outdoor conditions.

One of the primary steps to ensuring weather resistance and anti-corrosion properties is the selection of high-quality materials for the transformer casing. Prefabricated box-type substations are equipped with thickened galvanized steel plates for their main casing. These steel plates are known for their high mechanical strength, enabling them to resist external impacts, including abrasions caused by sandstorm erosion. This heavy-duty material forms the foundation of the equipment’s durability.

Moreover, the welding seams of the box body are carefully treated to ensure longevity. Traditional boxes often experience rust formation along welding gaps, which compromises the structure and can lead to water ingress or dust accumulation. To address this, the welding joints in our box-type substations are fully sealed and polished. This process eliminates any potential vulnerabilities in the seams, ensuring optimal protection against humidity, water intrusion, and sand infiltration.

The outer surface of the equipment is fortified employing advanced multi-layer electrostatic spraying and high-performance anti-corrosion coatings. A special weather-resistant formula is applied to enhance the coating's UV resistance, salt spray resistance, and moisture resistance.

This technology plays a crucial role in extending the lifespan of box-type transformers deployed in various challenging environments. In the Middle Eastern desert, the coatings act as a barrier against relentless UV radiation and corrosive sand particles. Similarly, in South Central Asia's coastal locations, the coatings resist salt fog erosion, and in tropical climates, they prevent mildew formation caused by high humidity.

While the exterior of the box transformers is constructed to withstand environmental forces, the internal components demand equal levels of comprehensive protection. The interior compartment design features a dedicated waterproof and dustproof structure that isolates the sensitive equipment from outside contaminants. Ventilation systems and dehumidification components ensure that interior elements remain dry, mitigating the risks posed by moisture, sand, and corrosive gases.

These systems safeguard critical components, such as transformers, high- and low-voltage Switchgears, and busbars, reducing their exposure to harmful environmental factors. By protecting these parts, manufacturers ensure stable voltage output and reliable long-term operation under all conditions.
