JP Outdoor Integrated Distribution Box

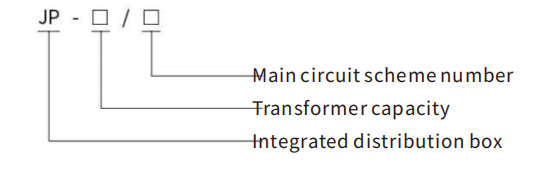

Model and Definitions
Use Environment and Conditions
◇ Ambient temperature: -25℃-+40℃;
◇ Relative humidity of air: daily average value is not more than 90%, monthly average value is not more than 90%;
◇ Altitude: no more than 1000m;
◇ Install it in a place without severe vibration, impact and corrosive gas.
Note: If the above conditions are exceeded, you can negotiate with our company.
Technical Parameters
| No. | Items | Units | data |
| 1 | Transformer capacity | KVA | 30-400 |
| 2 | Rated Working Voltage | V | AC400 |
| 3 | Auxiliary circuit working voltage | V | AC220,AC380 |
| 4 | Rated Frequency | HZ | 50 |
| 5 | Rated Currenc | A | ≤630 |
| 6 | Rated drop point operating current | A | 30-300 adjustable |
| 7 | Level of Protection | IP44 |

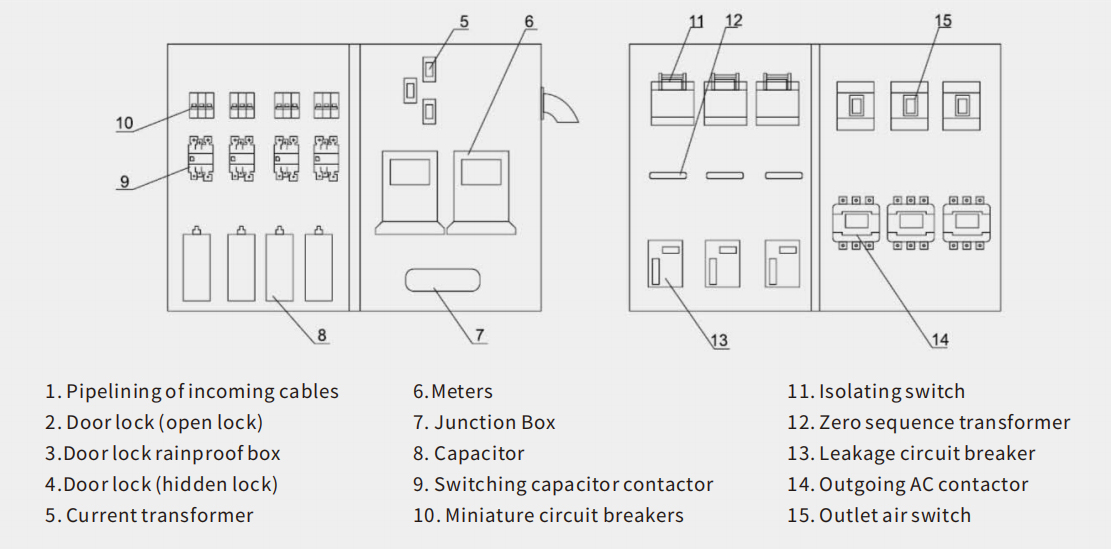

Box structure diagram
Installation Diagram

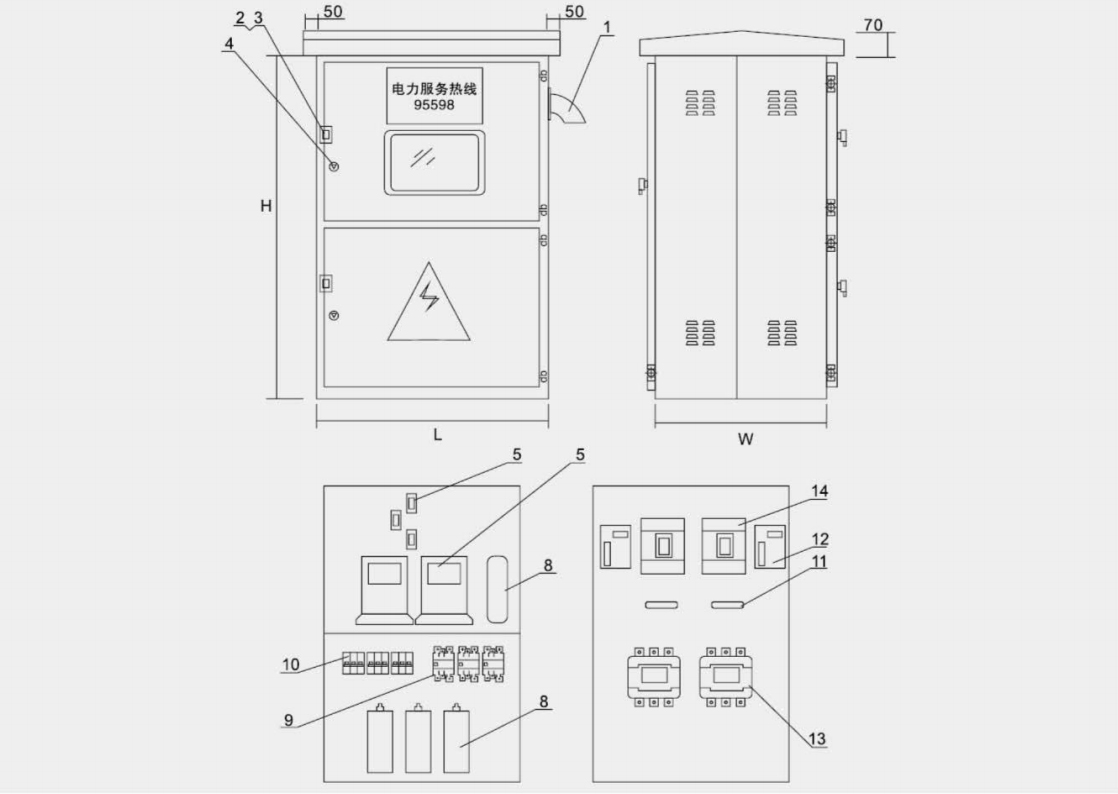

Vertical box dimensions
Box dimensions

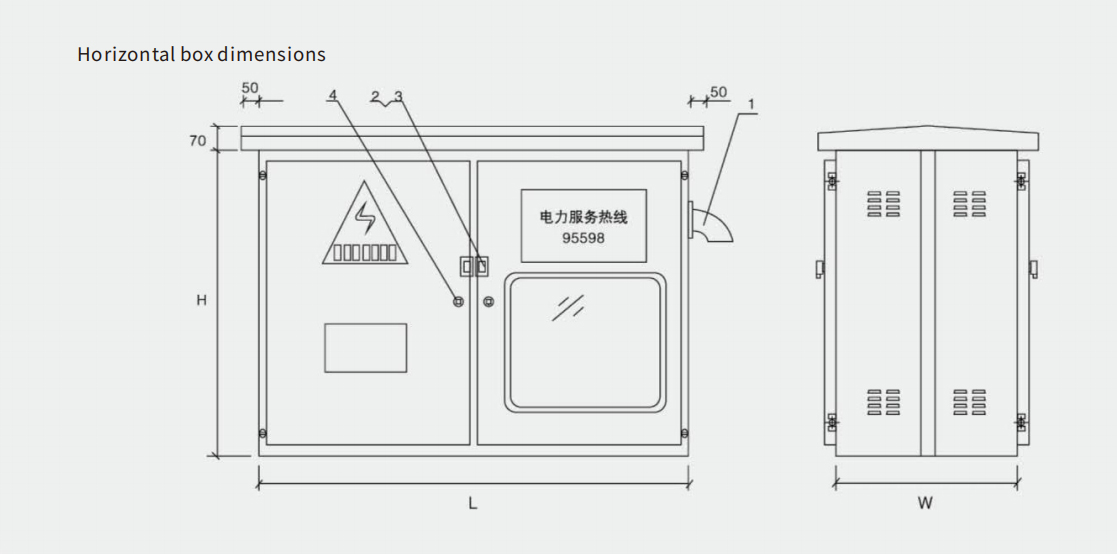

◇ Horizontal box dimensions
| Transformer capacity | Solution No. | L | W | H |
| 30-100KVA | 01,06 | 800 | 450 | 700 |
| 30-250KVA | 02,04,07,09 | 900 | 500 | 700 |
| 100-400KVA | 03,05,08,10 | 1100 | 600 | 800 |
Note: The above dimensions are for reference only
◇ Vertical box dimensions
| Transformer capacity | Solution No. | L | W | H |
| 30-100KVA | 01,06 | 600 | 450 | 1000 |
| 30-250KVA | 02,04,07,09 | 700 | 500 | 1000 |
| 100-400KVA | 03,05,08,10 | 800 | 600 | 1100 |
Note: The above dimensions are for reference only
Ordering Instructions
◇ Product Model, quantity;
◇ Product structure type (vertical, horizontal);
◇ Model and Technical Parameters of main components;
◇ Other special requirements.
