GGD low voltage fixed switchgear

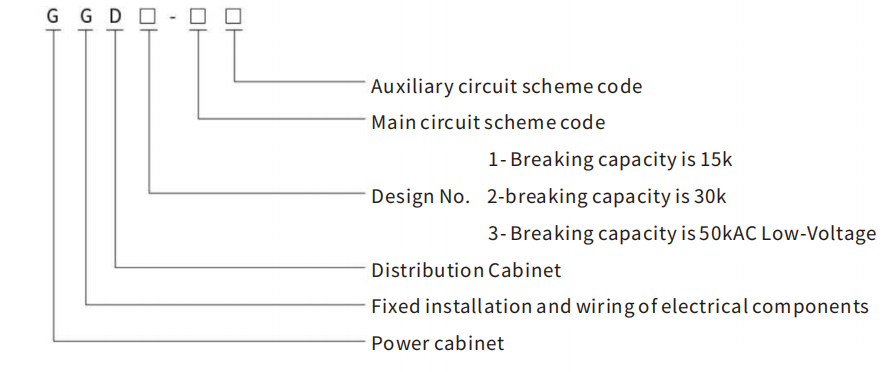

Model and Definitions
Application Conditions
◇ The ambient air temperature is not higher than +40℃ and not lower than -5℃, 24hThe average temperature inside shall not be higher than +35℃;
◇ For indoor installation, the altitude of the location where it is used shall not exceed 2000m;
◇ The relative humidity of the surrounding air should not exceed 50% when the maximum temperature is +40℃. A higher relative humidity should be allowed at lower temperatures (e.g. 90% at +20℃) to take into account the possible condensation caused by temperature changes.
◇ The equipment should be installed with an inclination of no more than 5° from the vertical plane;
◇ The equipment should be installed in a place without severe vibration and impact and in a place where the electrical components are not easily corroded;
◇ If users have special requirements, they can negotiate with the manufacturer to resolve them.
Electrical performance
Basic electrical parameters
| Model | Nominal Voltage(V) | Rated Currency(A) | Rated short circuit breaking Current (kA) | Rated short-time withstand current (1s) (kA) | Rated peak withstand current (kA) | |
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
| B | 600(630) | |||||
| C | 400 | |||||
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 63 |
| B | 1000 | |||||
| C | 600 | |||||
| GGD3 | 380 | A | 3150 | 50 | 50 | 105 |
| B | 2500 | |||||
| C | 2000 | |||||
◆ Main circuit scheme
The main circuit of the GGD cabinet has 129 design schemes and a total of 298 specifications (excluding schemes and specifications derived from functional changes in auxiliary circuits and changes in control voltage) .
in: GGD1 Type 49 plans 123 specifications GGD2 Type 53 plans 107 specifications GGD3 Type 27 plans 68 specifications.
The main circuit scheme was selected after soliciting opinions from a wide range of design and user departments, and the scheme required by power plants was added. Rated Currency to 3150A, Suitable for 2000kVAAnd the followingIn addition, in order to meet the needs of reactive power compensation, aGGJ1, GGJ2Capacitor compensation cabinet has 4 main circuit schemes and a total of 12 specifications.
◆ Auxiliary circuit solution
The design of auxiliary circuits is divided into two parts: power supply scheme and power plant scheme. GDJThere is enough space in the cabinet to install two Time components, and a specialLMZ3DType CurrentTransformers are used to meet the needs of power plants and special users for additional relay protection.
◆ Main bus
Considering the price ratio and the feasibility of replacing copper with aluminum, the Rated Currency is 1500ASingle aluminum busbar can be used when the rated currency is greater than 1500ADouble copper busbars are used to produceThe factory manufactures the prototype according to this regulation and passes the type test. Of course, the manufacturer can also replace the aluminum busbar with a copper busbar with the same current carrying capacity according to the user 's requirements. The overlapping surfaces of the busbars are all treated with tinning technology.
◆ Electrical component selection
GDJThe cabinet mainly adopts the most advanced electrical components that can be mass-produced in China. At the same time, according to the principle of economy and rationality, some feasible ones are reserved under the premise of full consideration of feasibility. Use old products such as DZ10D, D220, etc., and do not choose obsolete products.
HD13BX and HS13BX rotary knife switches are special components designed to meet the unique structural requirements of GGD cabinets. They change the operation mode of the mechanism and retain theThe advantage of the old product is that it is a practical new type of electrical component.
If the design department selects new electrical components with better performance and more advanced technology according to user needs, the GGD cabinet generally will not be replaced due to the good installation flexibility.The device components cause difficulties in manufacturing and installation.
In order to further improve the dynamic stability of the main circuit, a ZMJ type combined busbar clamp and insulation support for GGD cabinets are designed. The busbar clamp is made of high-strength, high-flame-retardant PPO alloy material thermoplastic molding, with high insulation strength, good self-extinguishing performance, and unique structure. It can be easily combined into a single busbar or double busbar clamp by simply adjusting the building block. The insulation support is a sleeve-type molded structure with low cost and high strength, which solves the defect of insufficient creepage distance of old products.

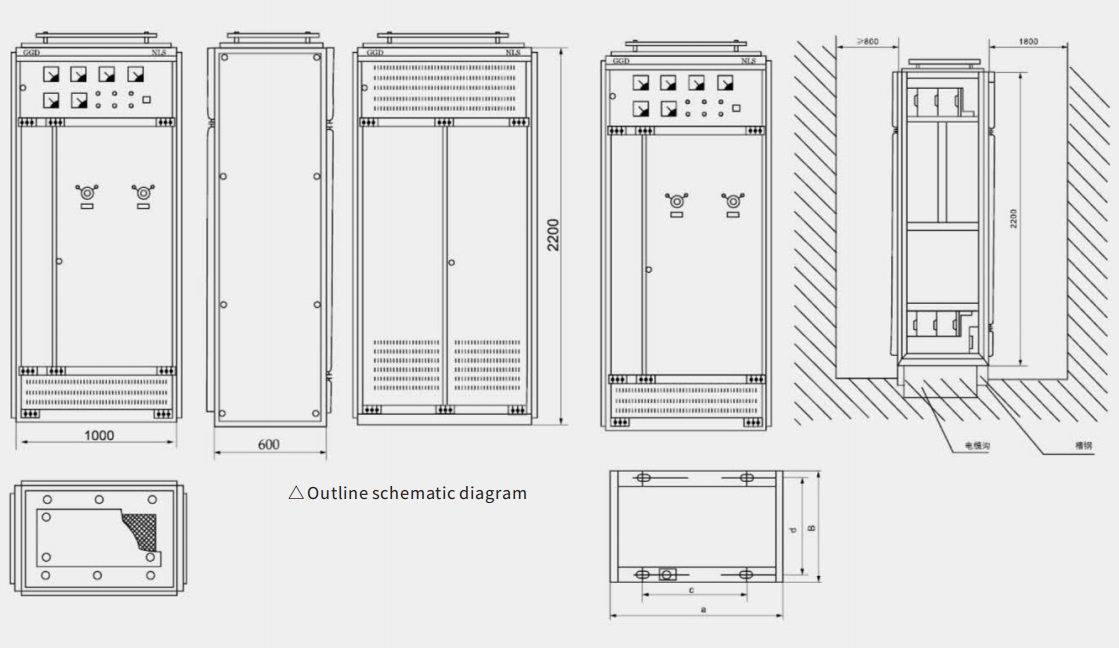

outside shape and installation dimensions
| Product Code | A | B | C | D |
| GGD06 | 600 | 600 | 450 | 556 |
| GGD06A | 600 | 800 | 450 | 756 |
| GGD08 | 800 | 600 | 650 | 556 |
| GGD08A | 800 | 800 | 650 | 756 |
| GGD10A | 1000 | 600 | 850 | 556 |
| GGD10A | 1000 | 800 | 850 | 756 |
| GGD12 | 1200 | 800 | 1050 | 756 |
Produce product Completeness
◆ Our company provides the following documents and attachments when supplying goods:
◇ Packing List
◇ Product Certificate
◇ User Manual
◇ Factory test report
◇ Related electrical drawings
◇ Cabinet door keys, operating handles and spare parts specified in the contract.
