When it comes to electrical infrastructure, the Oil Immersed Transformer Series really stands out as a dependable choice for distributing and managing energy. As we look into the common issues these transformers face, it’s important to remember that it’s not just about the technical stuff—people and sustainable practices matter just as much in tech development. Hangbian Electric Power Technology Co., Ltd. truly believes in this balanced approach. We make sure our innovative products, including the Oil Immersed Transformer Series, are supported by a team of highly skilled and knowledgeable folks.
Our R&D team works hard behind the scenes to tackle industry challenges, while our dedicated sales and after-sales teams are always there to provide top-notch support for our clients. In this blog, I’ll walk you through some of the typical problems with these transformers and show you how Hangbian’s people-oriented approach helps us find real solutions and promote sustainable growth in the power tech world.
Common Failures in Oil Immersed Transformers and Their Impact on Performance
Oil-immersed transformers might not be the flashiest parts of the power grid, but let’s be real — they’re absolutely essential. Still, they do come with their own set of challenges. Failures in these transformers aren’t rare and can seriously mess with how reliably and efficiently everything runs. For example, overheating is pretty common, and it’s often made worse by issues like sulphur corrosion caused by contaminants lurking in mineral insulating oils. When that happens, performance can really take a hit. It’s pretty alarming to think that compounds like dibenzyl disulphide (DBDS) can speed up the breakdown of copper windings, which is why keeping a close eye on these things and catching problems early is so important to avoid bigger trouble down the line.
On the bright side, new diagnostic tools like dissolved gas analysis (DGA) and vibration analysis have been game changers. They let engineers get a sneak peek at what's happening inside the transformer — catching warning signs before things blow up. Being proactive with maintenance, rather than waiting for something to break, makes all the difference. Interestingly, industry reports suggest that the market for oil-filled current transformers could hit around USD 3.51 billion by 2034. That just goes to show how much people are starting to realize how vital reliable transformers really are when it comes to keeping the power flowing. At the end of the day, making sure these transformers stay healthy and safe isn’t just about avoiding outages — it’s about keeping the whole power system solid and dependable worldwide.
Understanding the Role of Insulation in Transformer Efficiency and Longevity
When it comes to oil-filled transformers, insulation honestly plays a huge role in how well they work and how long they last. Good insulation isn’t just about cutting down on energy losses — it also helps keep things cool, which is super important for the transformer to run smoothly. I came across a report from IEEE that says if the insulation isn’t up to par, transformers could lose more than 5% of their power just because of electrical leaks. Over time, that really adds up, making things more expensive to run. Using sturdy materials like paper soaked in transformer oil can make a big difference, boosting dielectric strength and helping prevent stuff like electrical discharges or overheating from happening.
Plus, advancements in insulation tech are a game-changer for extending transformer life. A study by CIGRÉ points out that over 70% of transformer failures are tied back to insulation breaking down. Luckily, newer materials like resin-impregnated insulation systems are stepping up their game — providing up to 20% better thermal resistance under normal working conditions. As power companies aim for more reliable, efficient distribution, investing in high-quality insulation isn’t just smart, it’s essential to keep these transformers running smoothly for the long haul.
Analysis of Temperature Variations and Their Effects on Transformer Reliability
You know, when it comes to oil-filled transformers, temperature swings aren’t just minor details — they actually play a huge role in how reliable and well-performing these guys are. As transformers run, their internal temps can go up and down based on stuff like how much load they’re handling, the temperature outside, and how effective the cooling system is. When things get too hot, it’s not just uncomfortable — it can speed up the aging of the insulation and break down the transformer oil, which might even cause it to fail sooner than expected. That’s why keeping an eye on those temperature changes is a must — it helps keep the transformer running smoothly and prevents nasty surprises or outages.
Most of these transformers are designed with temperature management in mind, like using cooling radiators and sensors that keep track of heat. By regularly checking this data, engineers can spot patterns or issues early on and step in before things get totally out of hand. Routine maintenance — testing the oil, inspecting the insulation stuff — is also super important. It’s all about catching problems early so they don’t turn into serious reliability headaches. All in all, understanding how these temperature shifts affect the transformer can really help boost performance and make sure it lasts longer, saving everyone a lot of trouble down the line.
Temperature Variations in Oil Immersed Transformers and Their Impact on Reliability
This chart illustrates the relationship between temperature variations and transformer reliability over a season. The data reflects average temperatures and corresponding reliability metrics for oil immersed transformers.
The Importance of Regular Maintenance in Preventing Oil Leakage Issues
Keeping up with regular maintenance is really key if you want your oil-immersed transformers to last and run smoothly. These things are pretty crucial in any electrical setup since they depend on oil for insulation and cooling. Over time, stuff like temperature swings, dirt getting in, and normal wear and tear can cause oil leaks, which is a big problem—not just for how well the transformer works, but also for the environment. That’s why sticking to a proactive maintenance plan is so important; it helps catch issues early before they turn into costly repairs or cause unexpected downtime. Plus, it keeps everything running efficiently.
Doing routine checks, like inspecting the oil, using thermal imaging, or just giving it a good visual look, can really help spot early signs of trouble. When you keep an eye on the device regularly, you can swap out worn seals or gaskets and fix small leaks before they become big issues. Staying on top of this stuff not only keeps the transformer working at its best but also saves you from expensive repairs down the line. All in all, this kind of vigilance helps make sure the whole electrical system stays reliable and up and running without a hitch.
Addressing Common Issues in the Oil Immersed Transformer Series - The Importance of Regular Maintenance in Preventing Oil Leakage Issues
| Issue | Description | Impact | Maintenance Frequency | Preventive Action |
| Oil Leakage | Loss of transformer oil due to seals or gaskets failure. | Can lead to operational failures and environmental hazards. | Bi-annual checks | Routine inspection of seals and gaskets. |
| Contamination | Presence of moisture or foreign particles in the oil. | Degrades insulation properties, increasing failure risk. | Monthly monitoring | Regular oil quality tests. |
| Bushing Wear | Deterioration of bushings affecting oil mobility. | Increases risk of arcing and short circuits. | Yearly inspection | Replace worn bushings proactively. |
| Overheating | Excessive heat generation potentially leading to insulation breakdown. | Can cause transformer failure and costly downtime. | Quarterly reviews | Ensure adequate cooling system efficiency. |
| Faulty Connections | Corrosion or damage resulting in poor electrical contact. | Causes power loss and increase in operational costs. | Semi-annual maintenance | Regular tightness checks and corrosion assessment. |
Evaluating the Impact of Contaminated Oil on Transformer Functionality
Contaminated oil can really be a big headache for anyone managing oil-immersed transformers. It’s no joke — bad oil quality can actually cause serious failures, sometimes even catastrophic ones. According to the IEEE Standard 43, if transformer oil gets contaminated, its dielectric strength can drop by as much as 20 to 30 percent. That’s a pretty big deal because it weakens the insulation and speeds up the aging of the transformer's parts, which could lead to unexpected outages and costly repairs down the line.
To keep things running smoothly, it’s super important to keep an eye on the transformer oil regularly. In fact, studies show that more than 80% of transformer failures are linked to poor oil quality. So, setting up routine oil tests and filtration can really help reduce those risks.
**Pro tip:** Make sure to test for moisture and particles at least twice a year—that way, you keep the oil in good shape.
Also, don’t forget about temperature. When the oil gets too hot, oxidation speeds up—which means sludge and more contamination. That’s not good news for your transformer.
**Another tip:** Think about installing temperature monitoring systems. They can give you a heads-up and help prevent oil degradation before it gets out of hand.
By tackling these issues early on, you can make the transformer last longer and keep it working reliably. Trust me, a little maintenance now can save you a lot of headaches later.
Trends in Transformer Failure Rates and Best Practices for Mitigation
In recent years, we've seen quite a rise in the failure rates of oil-immersed transformers. Some reports even show an increase of up to 20% in certain setups, mainly because of issues like thermal stress and insulation wearing out. It's really a reminder that sticking to good maintenance and monitoring routines isn’t just a good idea — it’s crucial. Practices like regular infrared thermography checks and dissolved gas analysis (DGA) can actually help spot problems before they turn into big failures, which not only extends the life of these transformers but also boosts their reliability.
At Hangbian Electric Power Technology Co., Ltd., we’re all about taking a proactive stance on maintaining transformers and ensuring dependable performance. Thanks to our dedicated R&D team and the latest tech, we work hard to reduce the risks of failures in oil-immersed transformers. Plus, our top-notch sales and after-sales teams are always ready to help, making sure our solutions meet industry standards and suit our customers’ needs. We’re also committed to sustainable growth and fostering a people-focused culture, so we aim to build a skilled team that's ready to tackle these common industry challenges.

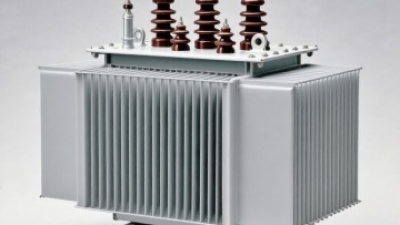

Maximizing Efficiency and Reliability with S(B)H15M Amorphous Alloy Distribution Transformers
In the modern landscape of energy distribution, maximizing efficiency and reliability has become paramount, particularly with the adoption of S(B)H15M amorphous alloy distribution transformers. These innovative transformers utilize iron-based amorphous metal cores, which facilitate easier magnetization and demagnetization processes compared to traditional silicon steel cores. This unique property leads to a significant reduction in iron loss—up to 70-80%. As a result, amorphous alloy transformers stand out for their low-noise operation and high-efficiency performance, making them ideal for modern power applications.
The adoption of amorphous alloy transformers is particularly impactful in large-scale developing countries like China and India. According to industry reports, if these transformers were widely implemented across their distribution networks, the potential electricity savings could reach approximately 25-30 TWh annually. In parallel, this transition could lead to a remarkable reduction of 20-30 million tons of carbon dioxide emissions each year. Such statistics highlight the transformative potential of amorphous alloy technologies, not only enhancing reliability in power distribution but also contributing significantly to environmental sustainability and reducing the carbon footprint.
As energy demands continue to rise, the shift toward high-efficiency solutions is crucial. Amorphous alloy transformers represent a forward-thinking approach for utilities aiming to balance consumer needs with environmental responsibilities, ensuring a more sustainable future for energy distribution systems globally.
FAQS
: Common failures include transformer overheating and sulphur corrosion from contaminants in mineral insulating oils, which can lead to significant performance degradation.
Contaminated oil can reduce the dielectric strength of the oil by 20-30%, accelerating the aging process of transformer components and increasing the likelihood of unexpected outages.
Over 70% of transformer failures are linked to insulation degradation.
Diagnostic technologies such as dissolved gas analysis (DGA) and vibration analysis are used to detect early signs of transformer failure.
Poor insulation can lead to energy losses exceeding 5% of a transformer's total capacity and increased operational costs over time.
Regular monitoring of transformer oil can identify and mitigate risks associated with poor oil quality, as studies show over 80% of transformer failures can be traced back to it.
Advanced insulation materials, like resin-impregnated systems, can increase thermal resistance by up to 20%, enhancing the performance and lifespan of transformers.
Monitoring temperature is crucial because elevated temperatures can accelerate the rate of oxidation in transformer oil, leading to sludge formation and increased contamination.
Moisture and particulate contamination tests should be conducted at least biannually to ensure the integrity of transformer oil.
The oil-immersed current transformer market is projected to reach USD 3.51 billion by 2034.
Conclusion
When it comes to oil-immersed transformers, understanding common failures and knowing how to handle them is super important if you want these machines to run smoothly and reliably. Problems can pop up from all sorts of causes—like insulation breaking down, temperature swings, or oil getting contaminated. These issues don’t just mess with the efficiency and lifespan of the transformers; they can also cause pretty big hiccups in operations. That’s why regular maintenance is such a big deal—it helps prevent oil leaks and keeps everything running without a hitch, giving you peace of mind and saving you from costly downtime.
At Hangbian Electric Power Technology Co., Ltd., we really care about the human side of things and are all about supporting sustainable growth through our work with transformers. Our hardworking R&D team and skilled sales experts are dedicated to tackling the tricky problems that come with oil-immersed transformers. We share solid best practices for preventing issues and making sure your equipment stays dependable. By focusing on innovation and giving attentive after-sales support, we aim to help our clients extend the lifespan and boost the efficiency of their transformers—ultimately, contributing to a greener, more sustainable energy future.
